TX42/26/18-3E27

Ferrite Cores

Manufacturer No:
TX42/26/18-3E27
Manufacture:
FERROXCUBE
Datasheet:
TX42/26/18-3E27
Description:
FERRITE CORES ROUND

In Stock

110 pcs On sales

$6.16

Product Parameter

Core Factor (ΣI/A) mm
0.769
Gap
Ungapped
Supplier Device Package
TX 42 x 26 x 18
Width
-
Effective Area (Ae) mm²
134
Finish
Epoxy
Effective Length (le) mm
103
Height
18.70mm
Effective Permeability (µe)
5500
Length
-
Effective Magnetic Volume (Ve) mm³
13810
Series
-
Diameter
43.15mm
Material
3E27
Core Type
Toroid
Tolerance
±25%
Part Status
Active

Company Profile

Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.

TX42/26/18-3E27 Relevant information

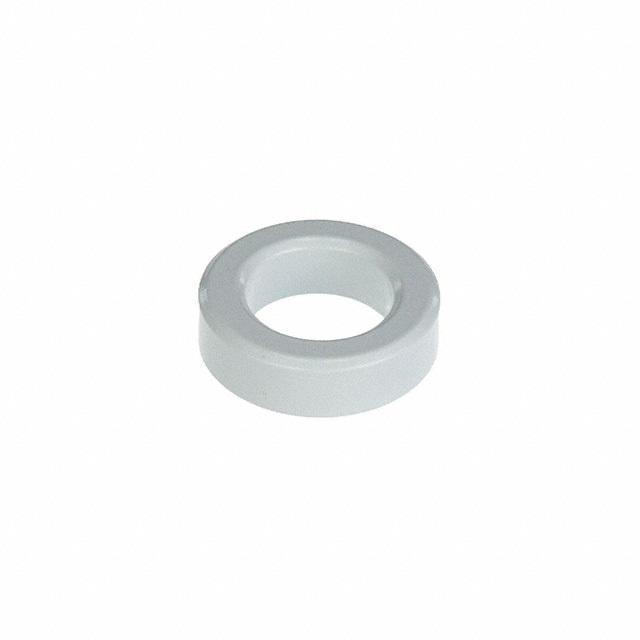

TX42/26/13-3C90
