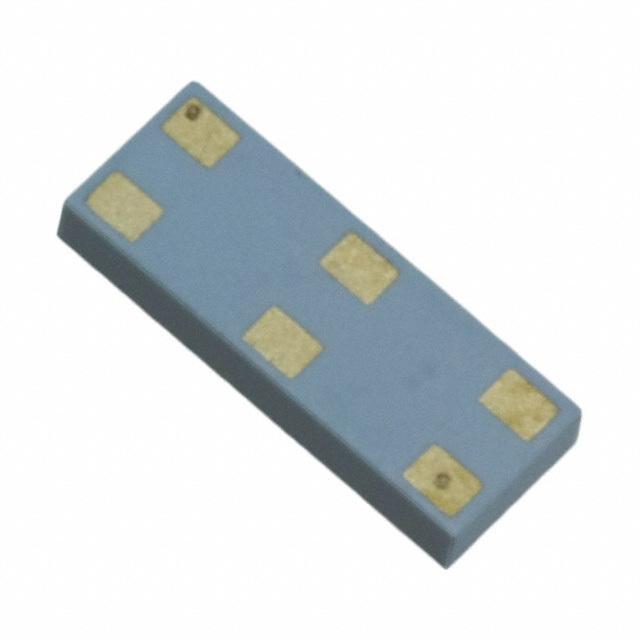

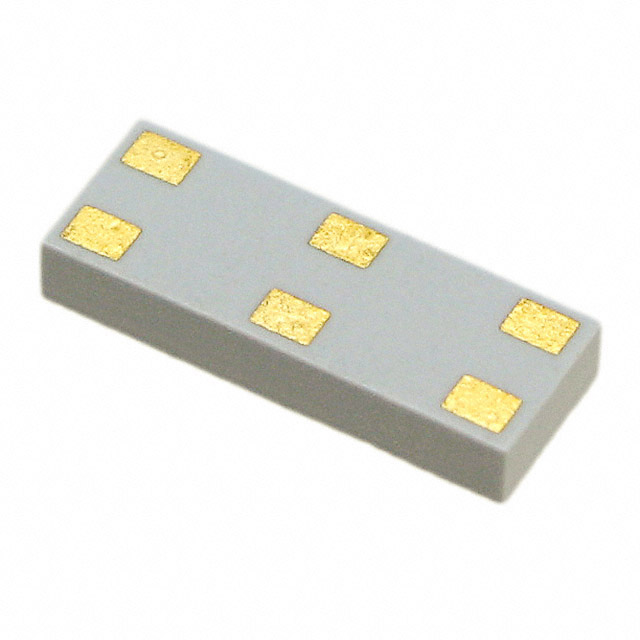

M830520
RF Antennas
- Manufacturer No:
- M830520
- Manufacture:
- Ethertronics/AVX
- Datasheet:
- M830520
- Description:
- RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD
In Stock
10000 pcs On sales
$1
Product Parameter
- Gain
- 1.1dBi, 3.2dBi
- Frequency Group
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- VSWR
- 2.6, 3
- Frequency Range
- 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
- Series
- Savvi™
- Number of Bands
- 2
- Features
- -
- Ingress Protection
- -
- Packaging
- Tape & Reel (TR)
- RF Family/Standard
- 802.15.4, Bluetooth, WiFi
- Part Status
- Active
- Frequency (Center/Band)
- 2.4GHz, 5GHz
- Return Loss
- -
- Termination
- Solder
- Antenna Type
- Chip
- Applications
- Bluetooth, Wi-Fi, WLAN, Zigbee™
- Height (Max)
- 0.052" (1.33mm)
- Mounting Type
- Surface Mount
