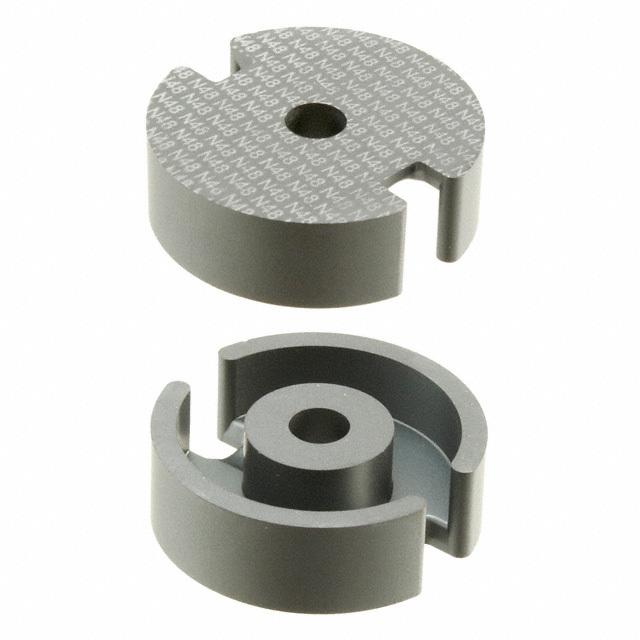

B65733A0000R087
Ferrite Cores
- Manufacturer No:
- B65733A0000R087
- Manufacture:
- EPCOS (TDK)
- Datasheet:
- B65733A0000R087
- Description:
- FERRITE CORE PM 16UH N87 2PCS
In Stock
0 pcs On sales
$249.35
Product Parameter
- Core Type
- PM
- Tolerance
- -20%, +30%
- Part Status
- Active
- Core Factor (ΣI/A) mm
- 0.116
- Gap
- Ungapped
- Inductance Factor (Al)
- 16µH
- Width
- -
- Supplier Device Package
- PM 114 x 93
- Finish
- Uncoated
- Effective Area (Ae) mm²
- 1720
- Height
- 46.50mm
- Effective Length (le) mm
- 200
- Length
- -
- Initial Permeability (µi)
- 2200
- Series
- B65733
- Effective Permeability (µe)
- 1480
- Diameter
- 114.00mm
- Effective Magnetic Volume (Ve) mm³
- 344000
- Material
- N87
- Minimum Core Cross Section (Amin) mm²
- 1380
