B65661W0000Y038

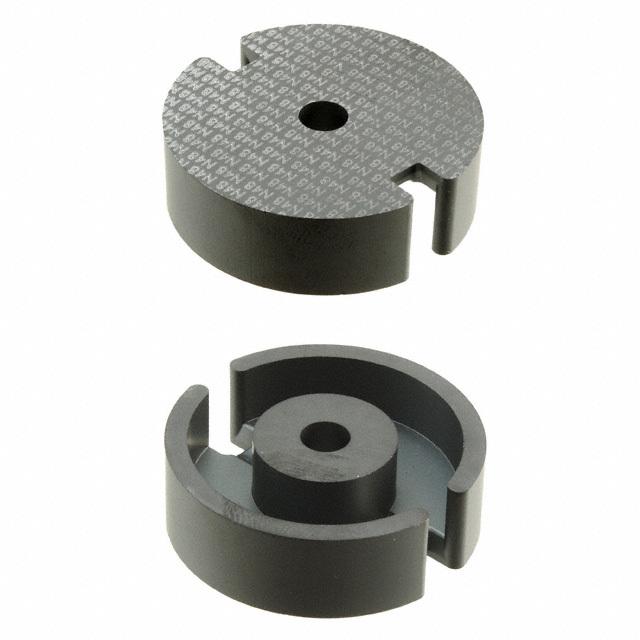

Ferrite Cores
- Manufacturer No:
- B65661W0000Y038
- Manufacture:
- EPCOS (TDK)
- Datasheet:
- B65661W0000Y038
- Description:
- FERRITE CORE P 16UH T38 2PCS
In Stock
1864 pcs On sales
$4.04
Product Parameter
- Core Type
- P (Pot Core)
- Tolerance
- -30%, +40%
- Part Status
- Active
- Core Factor (ΣI/A) mm
- 0.46
- Gap
- Ungapped
- Inductance Factor (Al)
- 16µH
- Width
- -
- Supplier Device Package
- P 22 x 13
- Finish
- Uncoated
- Effective Area (Ae) mm²
- 72.6
- Height
- 6.80mm
- Effective Length (le) mm
- 33.2
- Length
- -
- Initial Permeability (µi)
- 10000
- Series
- B65661
- Effective Permeability (µe)
- 5820
- Diameter
- 22.00mm
- Effective Magnetic Volume (Ve) mm³
- 2410
- Material
- T38
- Minimum Core Cross Section (Amin) mm²
- 58.1
