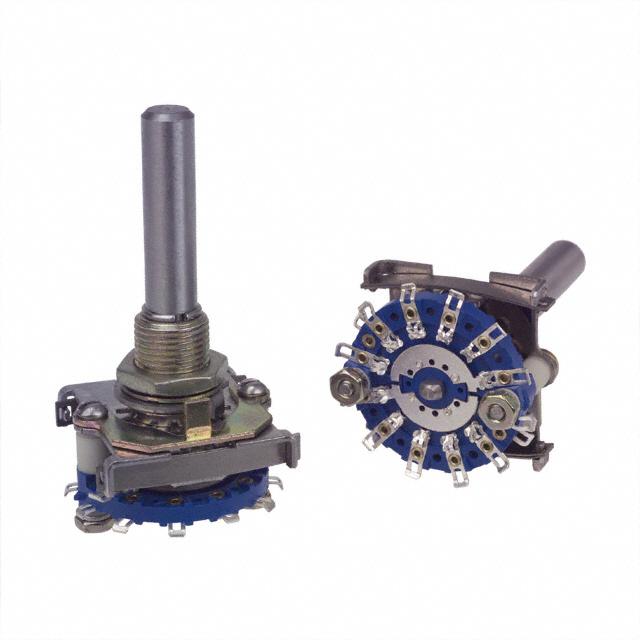

D2D0606N
Rotary Switches
- Manufacturer No:
- D2D0606N
- Manufacture:
- Electroswitch
- Datasheet:
- D2D0606N
- Description:
- SWITCH ROTARY 2-6POS 250MA 115V
In Stock
8 pcs On sales
$78.12
Product Parameter
- Series
- D2
- Circuit per Deck
- DP6T
- Features
- -
- Contact Material
- Brass
- Index Stops
- Adjustable
- Termination Style
- Solder Lug
- Part Status
- Active
- Depth Behind Panel
- 24.69mm
- Actuator Type
- Round (6.35mm Dia)
- Number of Positions
- 2 ~ 6
- Mounting Type
- Panel Mount
- Voltage Rating - AC
- 115V
- Angle of Throw
- 30°
- Voltage Rating - DC
- 28V
- Contact Finish
- Silver
- Current Rating (Amps)
- 250mA (AC), 550mA (DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 9.78mm Dia
- Actuator Length
- 25.40mm
- Number of Poles per Deck
- 2
- Number of Decks
- 3
- Operating Force
- -
