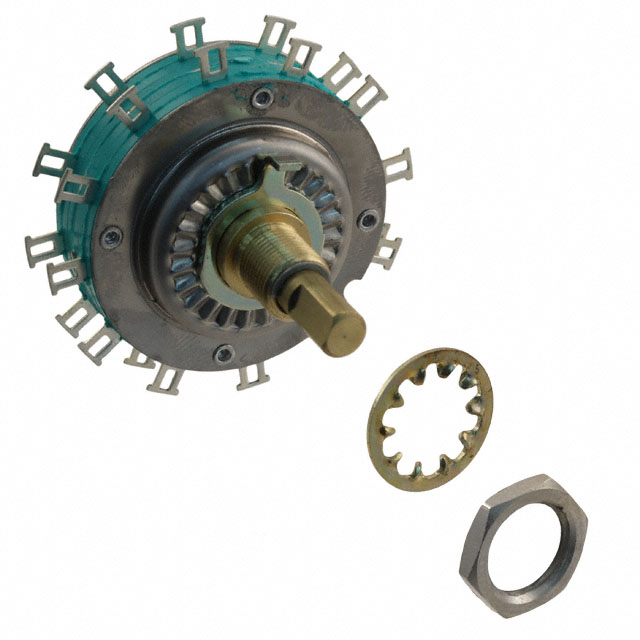

C7D0124N-C
Rotary Switches
- Manufacturer No:
- C7D0124N-C
- Manufacture:
- Electroswitch
- Datasheet:
- C7D0124N-C
- Description:
- SWITCH ROTARY 24POS 500MA 125V
In Stock
202 pcs On sales
$41.01
Product Parameter
- Operating Force
- -
- Series
- C7
- Circuit per Deck
- SP24T
- Features
- -
- Contact Material
- Brass
- Index Stops
- Continuous
- Termination Style
- Solder Lug
- Part Status
- Active
- Depth Behind Panel
- 20.60mm
- Actuator Type
- Flatted (6.35mm Dia)
- Number of Positions
- 24
- Mounting Type
- Panel Mount
- Voltage Rating - AC
- 125V
- Angle of Throw
- 15°
- Voltage Rating - DC
- 28V
- Contact Finish
- Silver
- Current Rating (Amps)
- 500mA (AC), 1A (DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 9.78mm Dia
- Actuator Length
- 14.29mm
- Number of Poles per Deck
- 1
- Number of Decks
- 1
