C1D0304N-A
Rotary Switches
- Manufacturer No:
- C1D0304N-A
- Manufacture:
- Electroswitch
- Datasheet:
- C1D0304N-A
- Description:
- SWITCH ROTARY 2-4POS 100MA 125V
In Stock
0 pcs On sales
$32.63
Product Parameter
- Index Stops
- Adjustable
- Termination Style
- Solder Lug
- Part Status
- Active
- Depth Behind Panel
- 20.60mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 2 ~ 4
- Mounting Type
- Panel Mount
- Voltage Rating - AC
- 125V
- Angle of Throw
- 30°
- Voltage Rating - DC
- 28V
- Contact Finish
- Silver
- Current Rating (Amps)
- 100mA (AC), 250mA (DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 6.76mm Dia
- Actuator Length
- 9.52mm
- Number of Poles per Deck
- 3
- Number of Decks
- 1
- Operating Force
- -
- Series
- C1
- Circuit per Deck
- 3P4T
- Features
- -
- Contact Material
- Brass
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
C1D0304N-A Relevant information
C1D0106N-VA
SWITCH ROTARY 2-6POS 100MA 125V
C1D0112N-A
SWITCH ROTARY 2-12POS 100MA 125V
C1D0112N-VA
SWITCH ROTARY 2-12POS 100MA 125V
C1D0112S-A
SWITCH ROTARY 2-12POS 100MA 125V
C1D0112S-VA
SWITCH ROTARY 2-12POS 100MA 125V

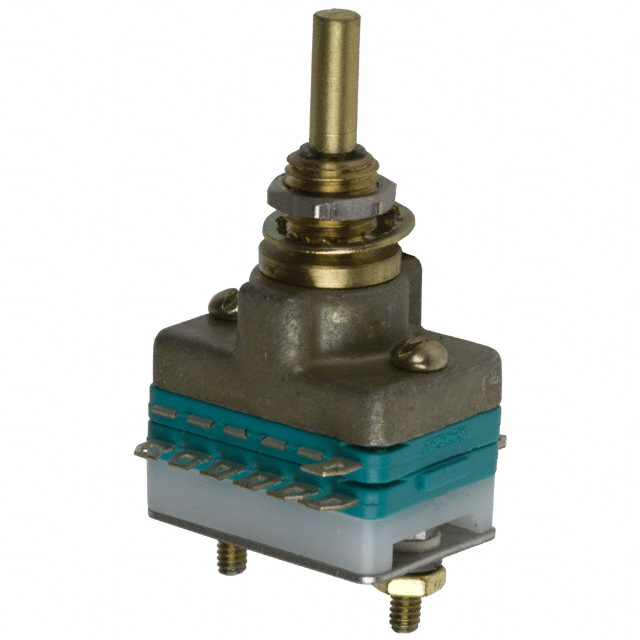

C1D0206N-A
