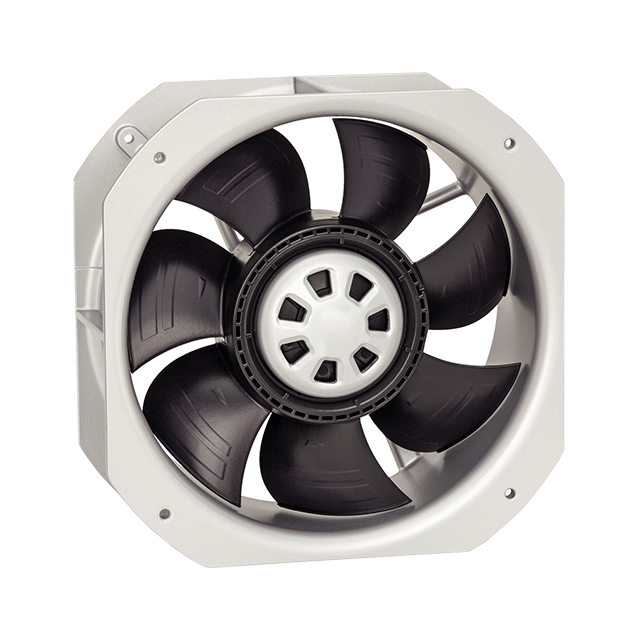

W3G250-HK35-11
AC Fans
- Manufacturer No:
- W3G250-HK35-11
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- W3G250-HK35-11
- Description:
- FAN AXIAL 115V 280X80MM 1120CFM
In Stock
32 pcs On sales
$399
Product Parameter
- RPM
- 2700 RPM
- Power (Watts)
- 125W
- Noise
- -
- Voltage Range
- 100 ~ 130VAC
- Width
- 80.00mm
- Static Pressure
- 0.520 in H2O (129.5 Pa)
- Series
- W3G250
- Voltage - Rated
- 115VAC
- Weight
- 7.6 lbs (3.4 kg)
- Material - Blade
- Polypropylene (PP)
- Air Flow
- 1120.0 CFM (31.36m³/min)
- Material - Frame
- Aluminum
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 280mm L x 280mm H
- Features
- PWM Control, Speed Sensor (Tach)
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Approvals
- UL
- Current Rating (Amps)
- 1.9A
- Part Status
- Active
- Operating Temperature
- -13 ~ 140°F (-25 ~ 60°C)
- Termination
- Terminal Block
- Bearing Type
- Ball
