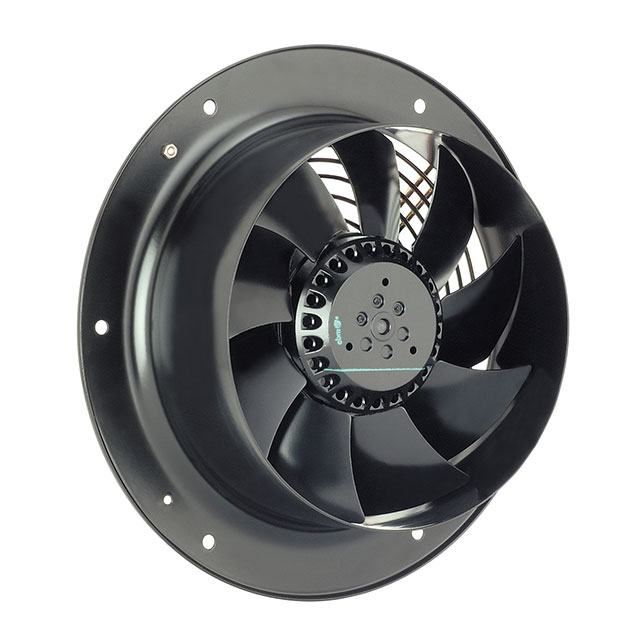

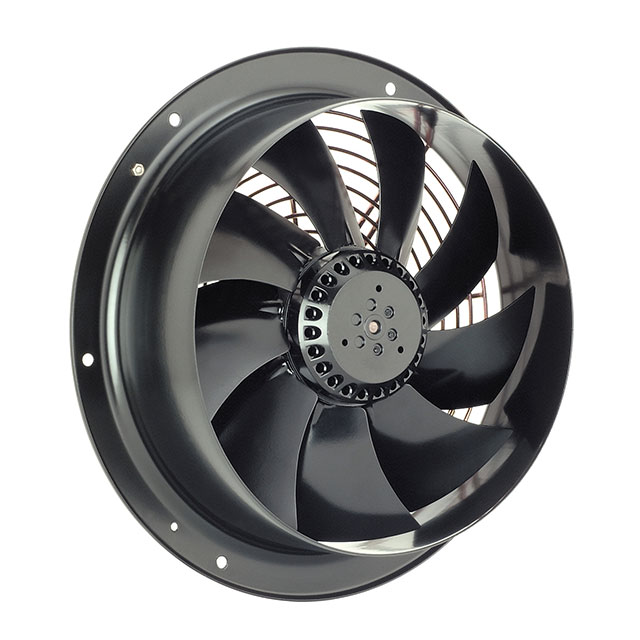

W2E200-HK38-01
AC Fans
- Manufacturer No:
- W2E200-HK38-01
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- W2E200-HK38-01
- Description:
- FAN AXIAL 225X80MM BALL 230VAC
In Stock
165 pcs On sales
$159.51
Product Parameter
- Part Status
- Active
- Current Rating (Amps)
- 0.350A
- Termination
- Terminal Block
- Operating Temperature
- -40 ~ 176°F (-40 ~ 80°C)
- Bearing Type
- Ball
- RPM
- 2800 RPM
- Power (Watts)
- 80.0W
- Noise
- 61.0 dB(A)
- Voltage Range
- -
- Width
- 80.00mm
- Static Pressure
- 0.381 in H2O (95.0 Pa)
- Series
- W2E200
- Voltage - Rated
- 230VAC
- Weight
- 4.7 lbs (2.1 kg)
- Lifetime @ Temp.
- -
- Air Flow
- 606.0 CFM (16.97m³/min)
- Material - Blade
- Steel
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Square - 225mm L x 225mm H
- Approvals
- CCC, CE, CSA, GOST, UL, VDE
- Ingress Protection
- -
