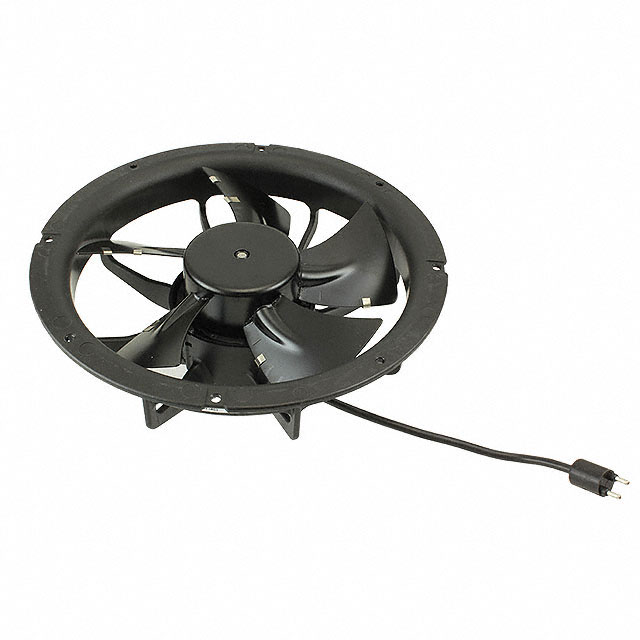

W1G200-HH77-52
DC Brushless Fans (BLDC)
- Manufacturer No:
- W1G200-HH77-52
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- W1G200-HH77-52
- Description:
- FAN AXIAL 225X80MM BALL 24VDC
In Stock
10 pcs On sales
$312.04
Product Parameter
- Width
- 80.00mm
- Static Pressure
- -
- Series
- W1G200
- Voltage - Rated
- 24VDC
- Weight
- 4.7 lbs (2.1 kg)
- Lifetime @ Temp.
- 57000 Hrs @ 40°C
- Air Flow
- 641.6 CFM (17.96m³/min)
- Material - Blade
- Steel
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Square - 225mm L x 225mm H
- Approvals
- CSA, EAC, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- Terminal Block
- Operating Temperature
- -13 ~ 140°F (-25 ~ 60°C)
- Bearing Type
- Ball
- RPM
- 2950 RPM
- Power (Watts)
- 55.0W
- Noise
- 60.0 dB(A)
- Voltage Range
- 16 ~ 28VDC
