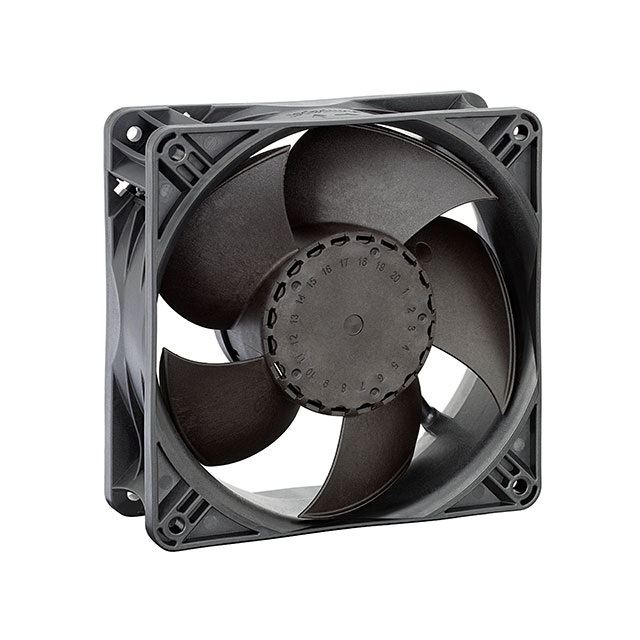

ACI4420N
AC Fans
- Manufacturer No:
- ACI4420N
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- ACI4420N
- Description:
- FAN 195-265VAC 86CFM 119X38MM
In Stock
0 pcs On sales
$68.19
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Features
- Electronic Commutation (EC)
- Size / Dimension
- Square - 119.5mm L x 119.5mm H
- Approvals
- CSAus, cURus
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Terminals
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
- Bearing Type
- Ball
- RPM
- 2700 RPM
- Power (Watts)
- 2.80W
- Noise
- 36.0 dB(A)
- Voltage Range
- 195 ~ 265VAC
- Width
- 38.00mm
- Static Pressure
- -
- Series
- Green Tech ACi4400
- Voltage - Rated
- 230VAC
- Weight
- 0.551 lb (249.93 g)
- Lifetime @ Temp.
- 65000 Hrs @ 40°C
- Air Flow
- 86.0 CFM (2.41m³/min)
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
