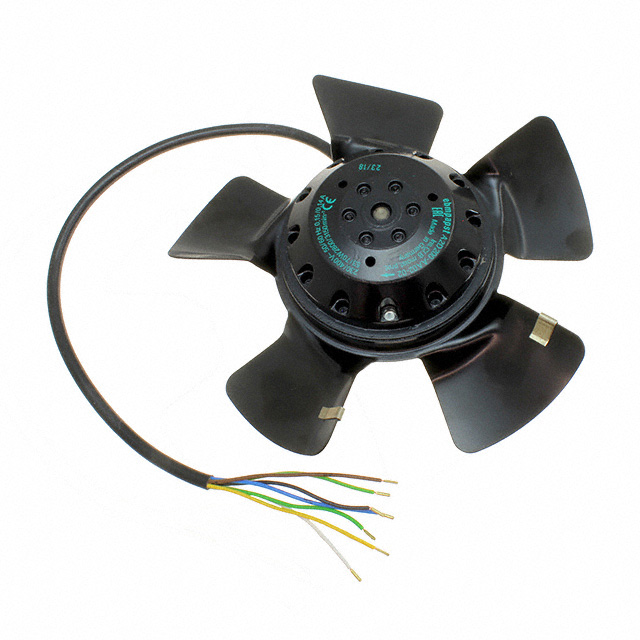

A2D250-AA02-47
AC Fans
- Manufacturer No:
- A2D250-AA02-47
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- A2D250-AA02-47
- Description:
- FAN 250X82.5MM BALL 400VAC WIRE
In Stock
0 pcs On sales
$256.96
Product Parameter
- Noise
- -
- Voltage Range
- -
- Width
- 82.50mm
- Static Pressure
- 1.204 in H2O (299.9 Pa)
- Series
- A2D250
- Voltage - Rated
- 230/400VAC
- Weight
- 4.8 lbs (2.2 kg)
- Lifetime @ Temp.
- -
- Air Flow
- -
- Material - Blade
- Steel
- Fan Type
- Tubeaxial, 3 Phase
- Material - Frame
- -
- Features
- Dual Voltage
- Size / Dimension
- Round - 250mm Dia
- Approvals
- CE
- Ingress Protection
- IP44
- Part Status
- Active
- Current Rating (Amps)
- 0.26A
- Termination
- 7 Wire Leads
- Operating Temperature
- -13 ~ 104°F (-25 ~ 40°C)
- Bearing Type
- Ball
- RPM
- 2950 RPM
- Power (Watts)
- 160W
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
A2D250-AA02-47 Relevant information
A2D200-AA02-01
AC AXIAL FAN
A2D200-AA02-02
AC AXIAL FAN

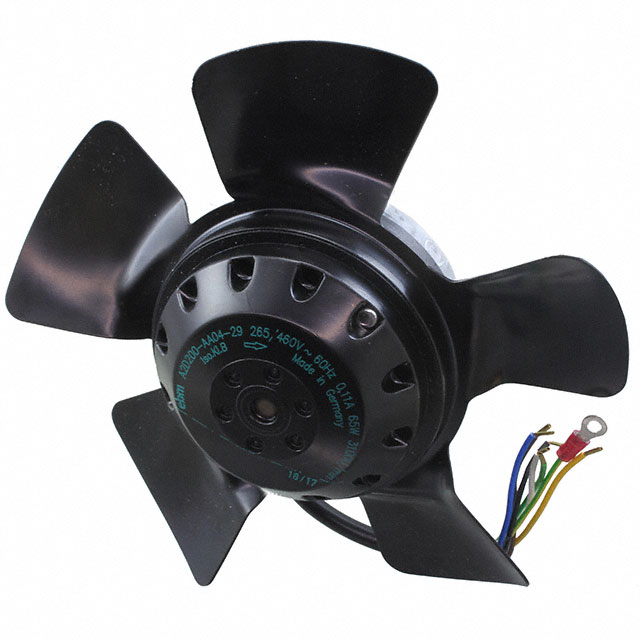

A2D200-AA04-29
