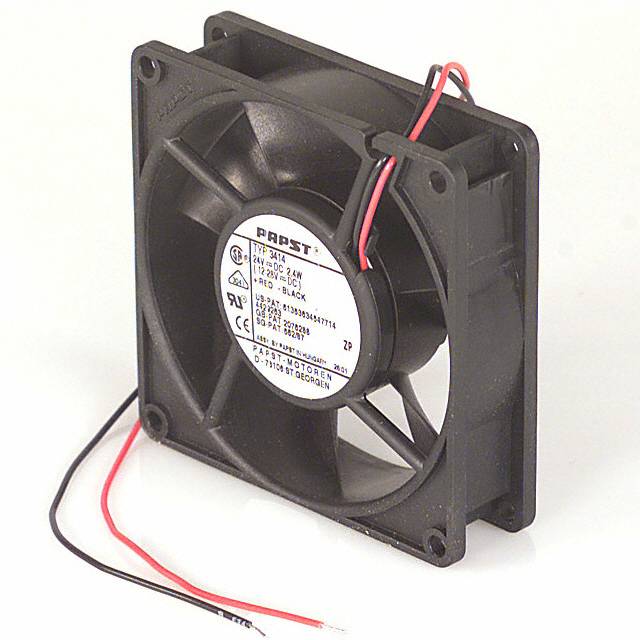

3414NGL
DC Brushless Fans (BLDC)
- Manufacturer No:
- 3414NGL
- Manufacture:
- ebm-papst Inc.
- Datasheet:
- 3414NGL
- Description:
- FAN AXIAL 92X25.4MM 24VDC WIRE
In Stock
5 pcs On sales
$26.51
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Features
- -
- Size / Dimension
- Square - 92mm L x 92mm H
- Approvals
- CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Sintec
- RPM
- 1950 RPM
- Power (Watts)
- 1.40W
- Noise
- 23.0 dB(A)
- Voltage Range
- 18 ~ 28VDC
- Width
- 25.40mm
- Static Pressure
- -
- Series
- 3400N
- Voltage - Rated
- 24VDC
- Weight
- 0.22 lb (99.79 g)
- Lifetime @ Temp.
- 80000 Hrs @ 40°C
- Air Flow
- 35.9 CFM (1.01m³/min)
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
3414NGL Relevant information
3414
FAN AXIAL 92X25.4MM 24VDC WIRE

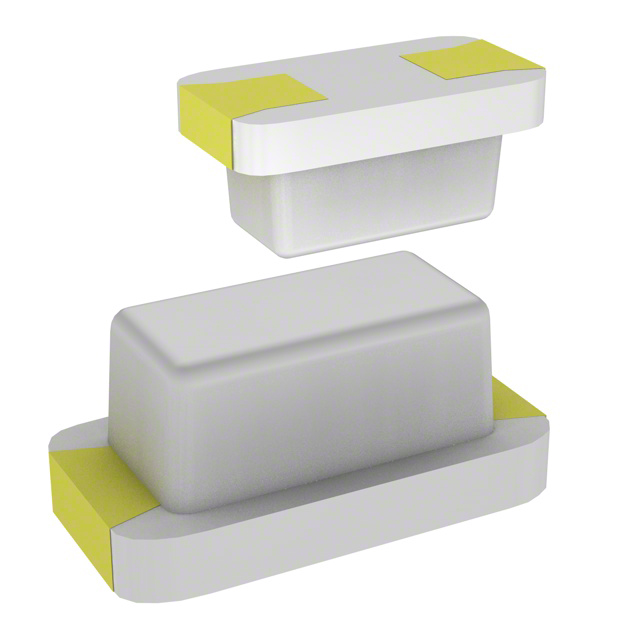

3414.0112.22
