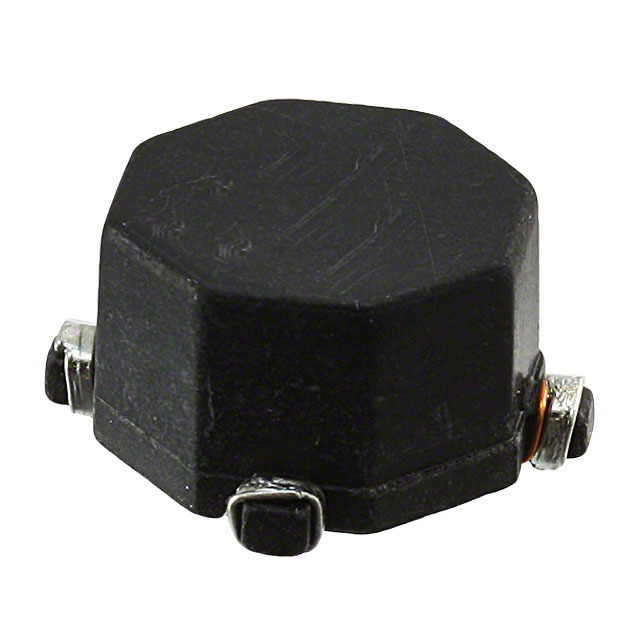

CTX10-4-R
Arrays, Signal Transformers
- Manufacturer No:
- CTX10-4-R
- Manufacture:
- Eaton-Electronics Division
- Package:
- Nonstandard
- Datasheet:
- CTX10-4-R
- Description:
- INDUCT ARRAY 2 COIL 9.6UH SMD
In Stock
4321 pcs On sales
$0
Product Parameter
- Operating Temperature
- -40°C ~ 85°C
- Height
- 0.250" (6.35mm)
- Current Rating - Series
- 1.7A
- Series
- OCTA-PAC®
- Current Rating - Parallel
- 3.4A
- Ratings
- -
- DC Resistance (DCR) - Series
- 78mOhm Max
- Packaging
- Digi-Reel®
- DC Resistance (DCR) - Parallel
- 19mOhm Max
- Shielding
- Unshielded
- Inductance - Connected In Series
- 38.42µH
- Tolerance
- ±20%
- Inductance - Connected In Parallel
- 9.6µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.550" L x 0.550" W (13.97mm x 13.97mm)
