RDMAR16P1T
DIP Switches
- Manufacturer No:
- RDMAR16P1T
- Manufacture:
- E-Switch
- Datasheet:
- RDMAR16P1T
- Description:
- SWITCH ROTARY DIP HEX 100MA 42V
In Stock
945 pcs On sales
$3.78
Product Parameter
- Mounting Type
- Through Hole
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 0.291" (7.40mm)
- Voltage Rating
- 42VDC
- Series
- RDM
- Electrical Life
- 25,000 Steps
- Circuit
- Hexadecimal
- Mechanical Life
- 25,000 Steps
- Features
- IP67 - Dust Tight, Waterproof
- Contact Material
- -
- Washable
- Yes
- Termination Style
- PC Pin
- Packaging
- Tube
- Height Above Board
- 0.144" (3.66mm)
- Part Status
- Active
- Number of Positions
- 16
- Actuator Type
- Rotary for Tool
- Current Rating (Amps)
- 100mA
- Body Material
- -
- Operating Temperature
- -60°C ~ 125°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RDMAR16P1T Relevant information

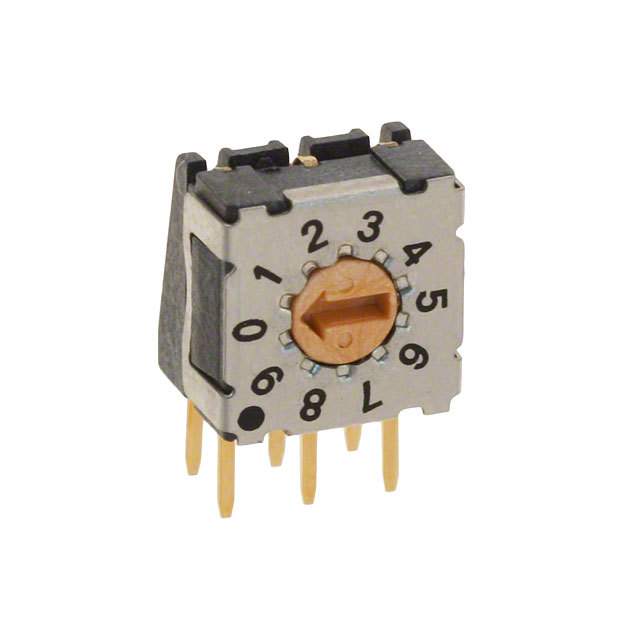

RDMAC10R2T
SW ROTARY DIP BCD COMP 100MA 42V
RDMAC10S1R
SW ROTARY DIP BCD COMP 100MA 42V

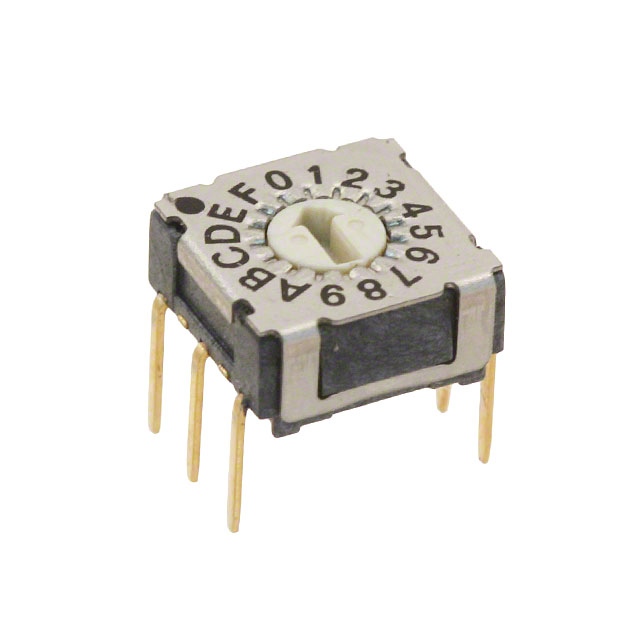

RDMAC16P1T
SW ROTARY DIP HEX COMP 100MA 42V
RDMAC16S1R
SW ROTARY DIP HEX COMP 100MA 42V
RDMAR10P1T
SWITCH ROTARY DIP BCD 100MA 42V

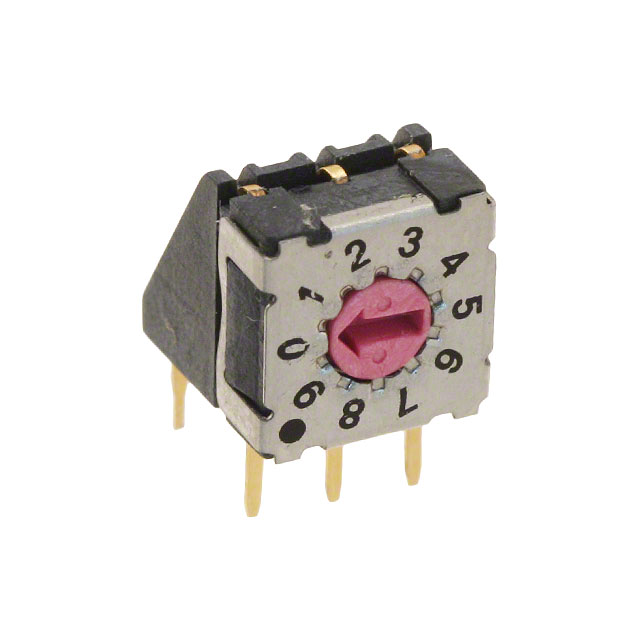

RDMAR10R1T
