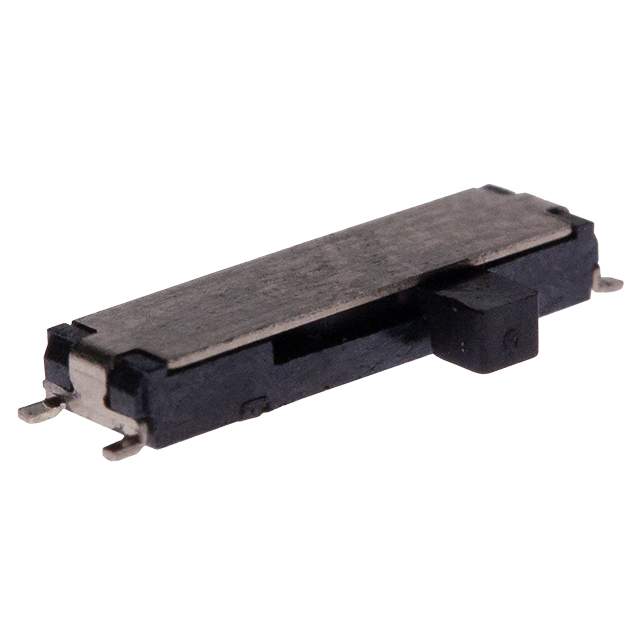

EG1380A
Slide Switches
- Manufacturer No:
- EG1380A
- Manufacture:
- E-Switch
- Datasheet:
- EG1380A
- Description:
- SWITCH SLIDE SP3T 300MA 6V
In Stock
0 pcs On sales
$0
Product Parameter
- Mounting Type
- Surface Mount, Right Angle
- Voltage Rating - DC
- 6V
- Switch Travel
- 2.00mm
- Current Rating (Amps)
- 300mA (DC)
- Contact Finish
- -
- Operating Temperature
- -10°C ~ 60°C
- Contact Timing
- Not Specified
- Actuator Length
- 2.00mm
- Electrical Life
- 10,000 Cycles
- Series
- EG
- Mechanical Life
- 10,000 Cycles
- Circuit
- SP3T
- Operating Force
- 250/300gf
- Features
- -
- Switch Function
- On-On-On
- Packaging
- Digi-Reel®
- Contact Material
- -
- Part Status
- Obsolete
- Actuator Material
- -
- Actuator Type
- Standard
- Termination Style
- Gull Wing
