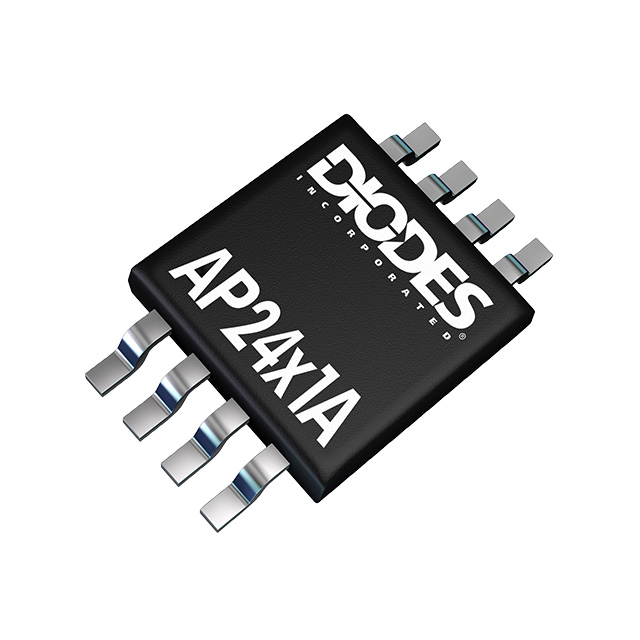

AP2401MP-13
PMIC - Power Distribution Switches, Load Drivers
- Manufacturer No:
- AP2401MP-13
- Manufacture:
- Diodes Incorporated
- Package:
- 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Datasheet:
- AP2401MP-13
- Description:
- IC USB SWITCH 8MSOP
In Stock
7880 pcs On sales
$0.41
Product Parameter
- Part Status
- Active
- Supplier Device Package
- 8-MSOP-EP
- Switch Type
- USB Switch
- Voltage - Supply (Vcc/Vdd)
- Not Required
- Rds On (Typ)
- 70mOhm
- Package / Case
- 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Voltage - Load
- 2.7V ~ 5.5V
- Base Part Number
- AP2401
- Series
- -
- Fault Protection
- Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
- Features
- Load Discharge, Status Flag
- Number of Outputs
- 1
- Interface
- On/Off
- Output Configuration
- High Side
- Packaging
- Cut Tape (CT)
- Ratio - Input:Output
- 1:1
- Input Type
- Non-Inverting
- Operating Temperature
- -40°C ~ 85°C (TA)
- Output Type
- P-Channel
- Current - Output (Max)
- 2A
