FFB1224VHE-BR00
DC Brushless Fans (BLDC)
- Manufacturer No:
- FFB1224VHE-BR00
- Manufacture:
- Delta Electronics
- Datasheet:
- FFB1224VHE-BR00
- Description:
- FAN AXIAL 120X38MM 24VDC WIRE
In Stock
552 pcs On sales
$32.21
Product Parameter
- RPM
- 3200 RPM
- Power (Watts)
- 13.40W
- Noise
- 53.0 dB(A)
- Voltage Range
- 14 ~ 26.4VDC
- Width
- 38.00mm
- Static Pressure
- 0.445 in H2O (110.8 Pa)
- Series
- FFB
- Voltage - Rated
- 24VDC
- Weight
- 0.816 lb (370.13 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 151.8 CFM (4.25m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Sensor
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.560A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
- Bearing Type
- Ball
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
FFB1224VHE-BR00 Relevant information

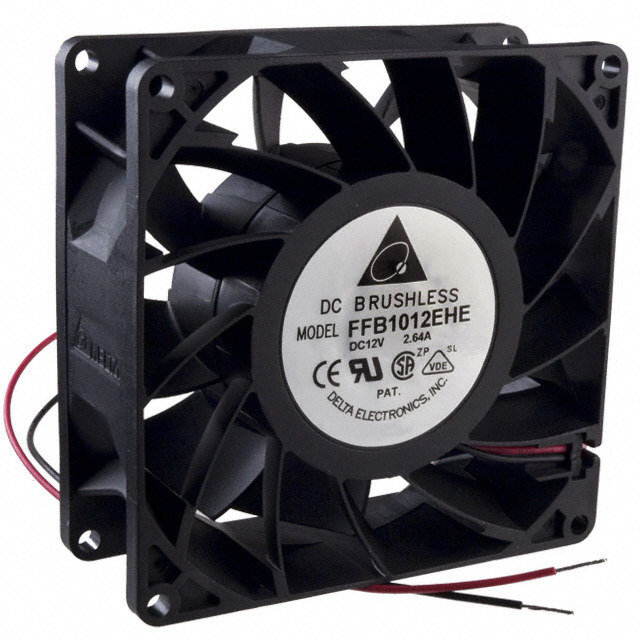

FFB1012EHE
FAN AXIAL 100X38MM 12VDC WIRE

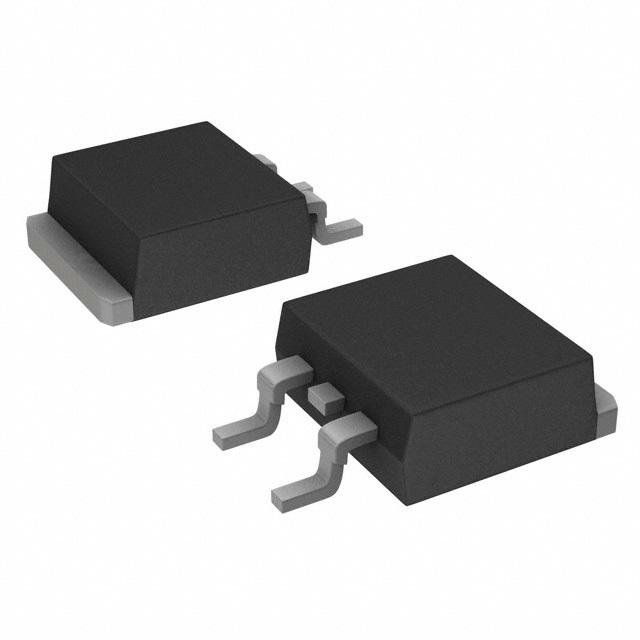

FFB10U120STM
DIODE GEN PURP 1.2KV 10A TO263AB
FFB10UP20STM
DIODE GEN PURP 200V 10A D2PAK

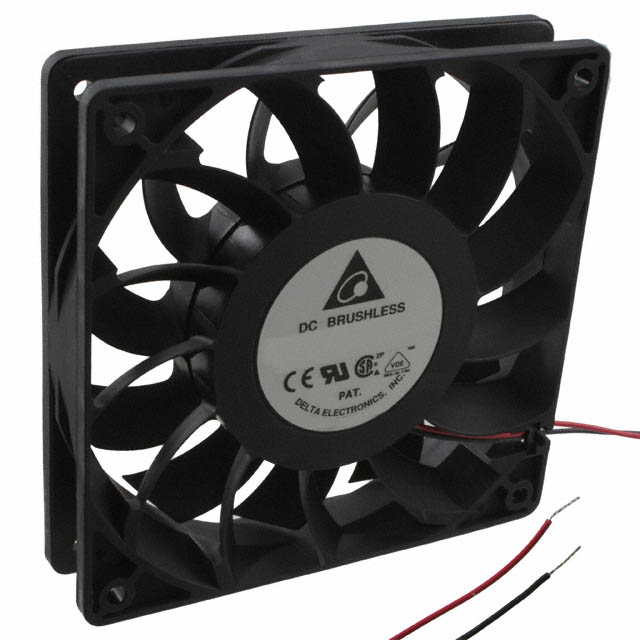

FFB1212EH-TZUJ
FAN AXIAL 120X25.4MM 12VDC WIRE

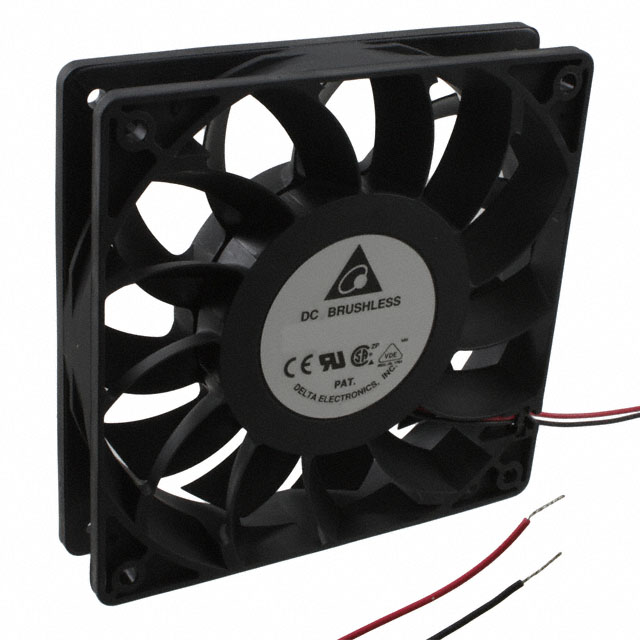

FFB1212HH-F00
