AFB1212HHE-TP02
DC Brushless Fans (BLDC)
- Manufacturer No:
- AFB1212HHE-TP02
- Manufacture:
- Delta Electronics
- Datasheet:
- AFB1212HHE-TP02
- Description:

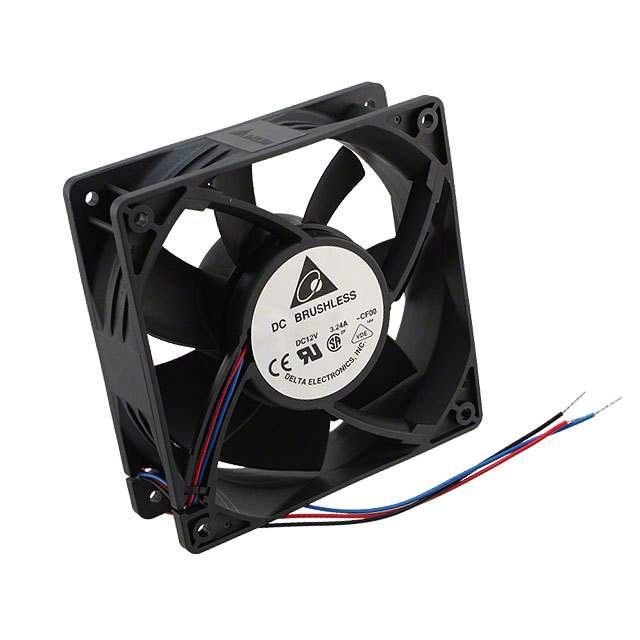

- FAN AXIAL 120X38MM 12VDC WIRE
In Stock
5977 pcs On sales
$23.26
Product Parameter
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.400A
- Termination
- 4 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 2900 RPM
- Power (Watts)
- 4.80W
- Noise
- 44.0 dB(A)
- Voltage Range
- 10.8 ~ 13.2VDC
- Width
- 38.00mm
- Static Pressure
- 0.354 in H2O (88.2 Pa)
- Series
- AFB
- Voltage - Rated
- 12VDC
- Weight
- 0.564 lb (255.83 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 120.1 CFM (3.36m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Square - 120mm L x 120mm H
