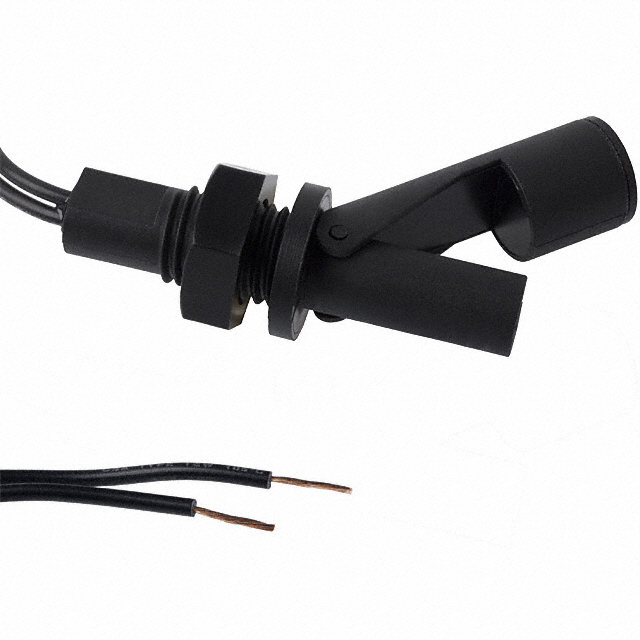

RSF88H100R
Float, Level Sensors
- Manufacturer No:
- RSF88H100R
- Manufacture:
- Cynergy 3
- Datasheet:
- RSF88H100R
- Description:
- FLOATSWITCH HORZ 1A NO/NC POLY
In Stock
133 pcs On sales
$20.01
Product Parameter
- Switch Actuation Level
- 0.787" (20mm)
- Material - Housing & Prism
- Polypropylene (PP)
- Minimum Liquid Specific Gravity
- 0.85
- Type
- Liquid
- Series
- RSF80
- Current
- 1A
- Output Type
- Switch (Single Float)
- Part Status
- Active
- Mounting Type
- Male 1/2" (12.7mm) NPT
- Voltage Rating
- 300VAC, 300VDC
- Output Configuration
- SPST-NC/NO
- Operating Temperature
- -20°C ~ 100°C
