TB010-508-21BE
Terminal Blocks - Wire to Board
- Manufacturer No:
- TB010-508-21BE
- Manufacture:
- CUI, Inc.
- Datasheet:
- TB010-508-21BE
- Description:
- TERMINAL BLOCK, SCREW TYPE, 5.08
In Stock
0 pcs On sales
$3.02
Product Parameter
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Color
- Blue
- Number of Levels
- 1
- Pitch
- 0.200" (5.08mm)
- Wire Termination
- Screw - Rising Cage Clamp
- Series
- TB010-508
- Mating Orientation
- Horizontal with Board
- Current
- 20A
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Voltage
- 300V
- Positions Per Level
- 21
- Features
- Interlocking (Side)
- Operating Temperature
- -40°C ~ 105°C
- Packaging
- Bulk
- Clamp Material - Plating
- Copper Alloy - Nickel Plated
- Wire Gauge
- 12-26 AWG
- Screw Material - Plating
- Steel - Zinc Plated
- Part Status
- Active
- Contact Material - Plating
- Copper Alloy - Tin Plated
- Screw Thread
- M3
- Mounting Type
- Through Hole
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
TB010-508-21BE Relevant information

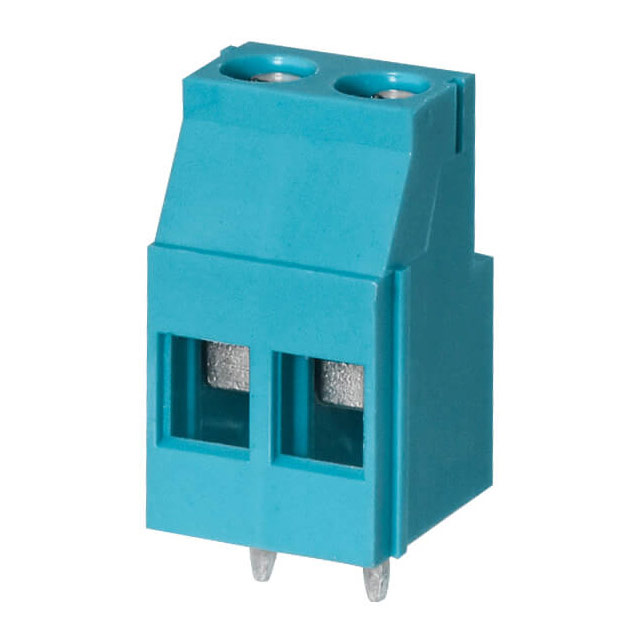

TB010-508-02BE
TERMINAL BLOCK, SCREW TYPE, 5.08

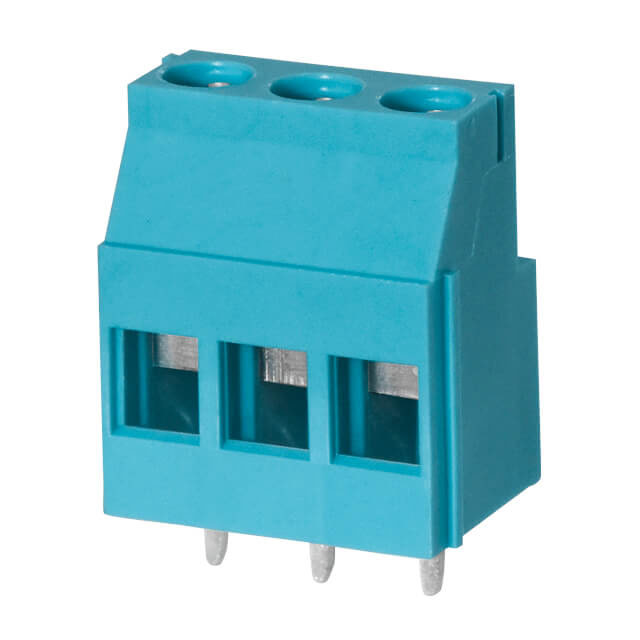

TB010-508-03BE
TERMINAL BLOCK, SCREW TYPE, 5.08
TB010-508-04BE
TERMINAL BLOCK, SCREW TYPE, 5.08

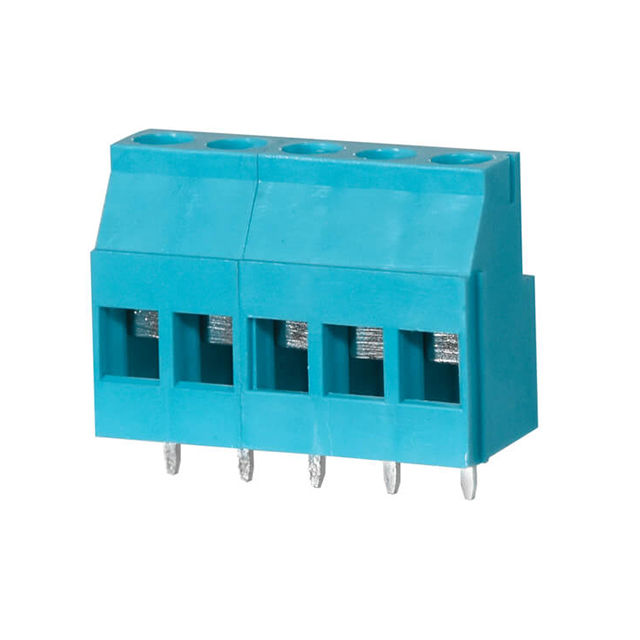

TB010-508-05BE
TERMINAL BLOCK, SCREW TYPE, 5.08

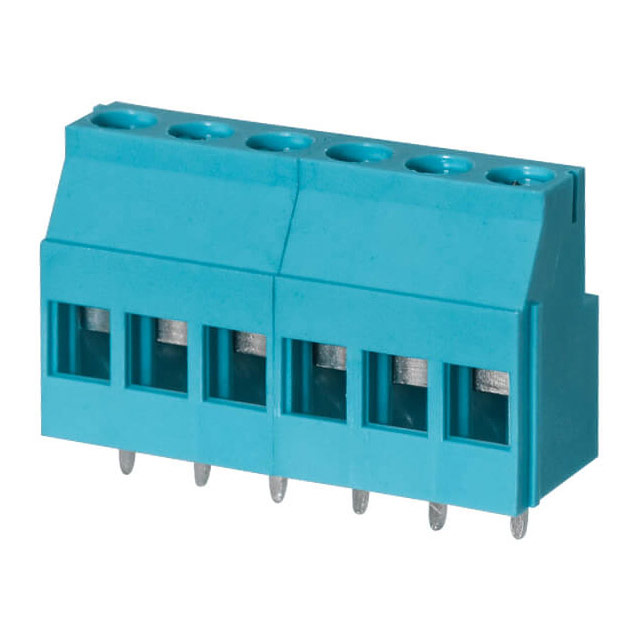

TB010-508-06BE
TERMINAL BLOCK, SCREW TYPE, 5.08

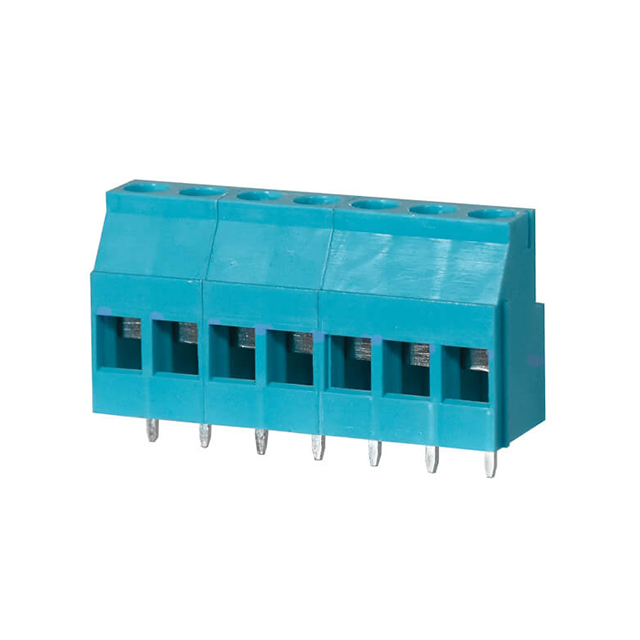

TB010-508-07BE
