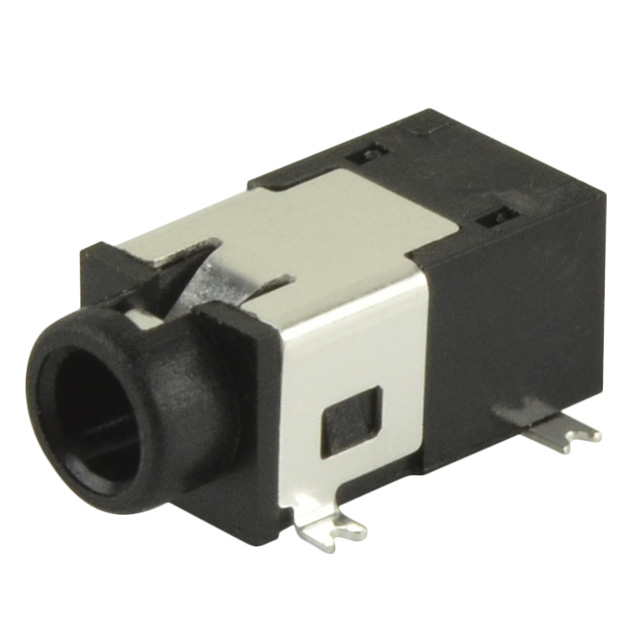

SJ2-25974B-SMT-TR
Barrel - Audio Connectors
- Manufacturer No:
- SJ2-25974B-SMT-TR
- Manufacture:
- CUI, Inc.
- Datasheet:
- SJ2-25974B-SMT-TR
- Description:
- AUDIO JACK, 2.5 MM, RT, 4 CONDUC
In Stock
1249 pcs On sales
$0
Product Parameter
- Shielding
- Unshielded
- Voltage - Rated
- 12VDC
- Body Color
- Black
- Contact Material
- Copper Alloy
- Part Status
- Active
- Insulation Color
- -
- Termination
- Solder
- Internal Switch(s)
- Single Switch
- Thread Size
- -
- Dielectric Material
- Polyamide (PA10T), Nylon 10T
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Mating Length/Depth
- 0.433" (11.00mm)
- Body Material
- -
- Current Rating (Amps)
- 1A
- Gender
- Female
- Cable Opening
- -
- Operating Temperature
- -25°C ~ 85°C
- Series
- SJ2
- Mounting Type
- Surface Mount, Right Angle
- Contact Material - Plating
- Gold
- Features
- Board Guide
- Connector Type
- Phone Jack
- Number of Positions/Contacts
- 4 Conductors, 5 Contacts
- Includes
- -
- Actual Diameter
- 0.102" (2.60mm)
- Industry Recognized Mating Diameter
- 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
- Packaging
- Digi-Reel®
- Panel Hole Size
- -
