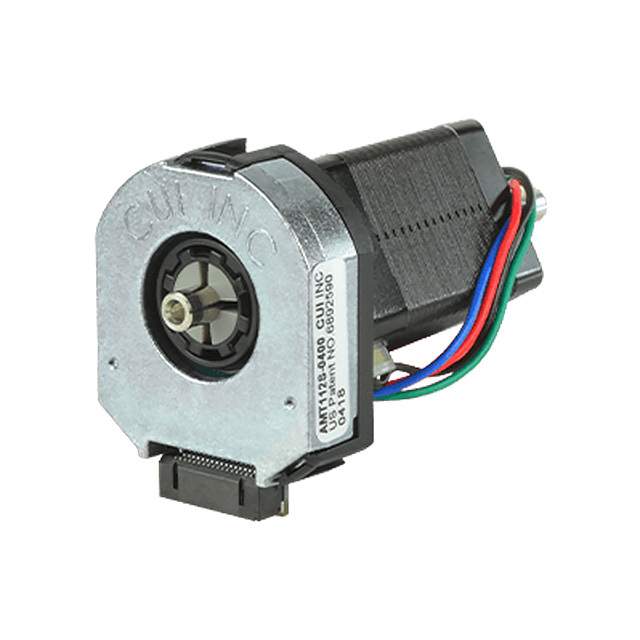

NEMA17-19-07SD-AMT112S
Stepper Motors
- Manufacturer No:
- NEMA17-19-07SD-AMT112S
- Manufacture:
- CUI, Inc.
- Datasheet:
- NEMA17-19-07SD-AMT112S
- Description:
- STEPPER MOTOR W/ INCREMENTAL ENC
In Stock
7 pcs On sales
$116.91
Product Parameter
- Type
- -
- Diameter - Shaft
- 0.197" (5.00mm)
- Series
- NEMA17-AMT112S
- Size / Dimension
- Square - 1.669" x 1.669" (42.40mm x 42.40mm)
- Accuracy
- ±0.2%
- Termination Style
- Connector
- Features
- Integrated Encoder, Flatted Shaft
- Steps per Revolution
- 200
- Approvals
- CE
- Current Rating (Amps)
- 2.1A
- Coil Type
- Bipolar
- Mounting Hole Spacing
- 1.220" (31.00mm)
- Step Angle
- 1.8°
- Operating Temperature
- -20°C ~ 50°C
- Part Status
- Active
- Length - Shaft and Bearing
- 0.945" (24.00mm)
- Rotor Inertia
- 1.6gcm²
- Torque - Holding (oz-in / mNm)
- 83 / 586.11
- Coil Resistance
- 1.3 Ohms
- NEMA Frame Size
- 17
- Voltage - Rated
- 24 ~ 48VDC
