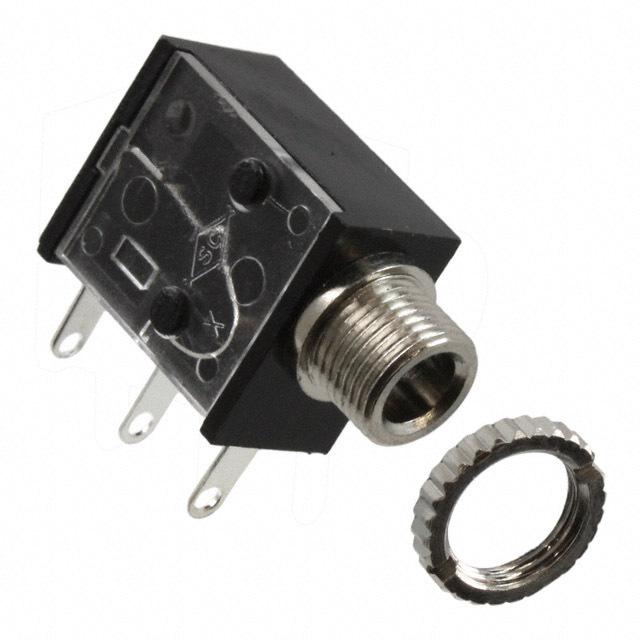

MJ-3536N
Barrel - Audio Connectors
- Manufacturer No:
- MJ-3536N
- Manufacture:
- CUI, Inc.
- Datasheet:
- MJ-3536N
- Description:
- CONN JACK MONO 3.5MM R/A
In Stock
17348 pcs On sales
$0.8
Product Parameter
- Body Material
- Brass
- Current Rating (Amps)
- 1A
- Gender
- Female
- Cable Opening
- -
- Operating Temperature
- -
- Series
- -
- Mounting Type
- Through Hole, Right Angle
- Contact Material - Plating
- Tin
- Features
- -
- Connector Type
- Phone Jack
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- -
- Actual Diameter
- 0.142" (3.60mm)
- Industry Recognized Mating Diameter
- 3.50mm (0.141", 1/8", Mini Plug) - Headphone
- Packaging
- Bulk
- Panel Hole Size
- 0.236" (5.99mm)
- Shielding
- Unshielded
- Voltage - Rated
- 12VDC
- Body Color
- Black
- Contact Material
- Brass; Copper Alloy
- Part Status
- Active
- Insulation Color
- -
- Termination
- Solder Eyelet(s)
- Internal Switch(s)
- Single Switch
- Thread Size
- M6
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Signal Lines
- Mono
- Mating Length/Depth
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MJ-3536N Relevant information

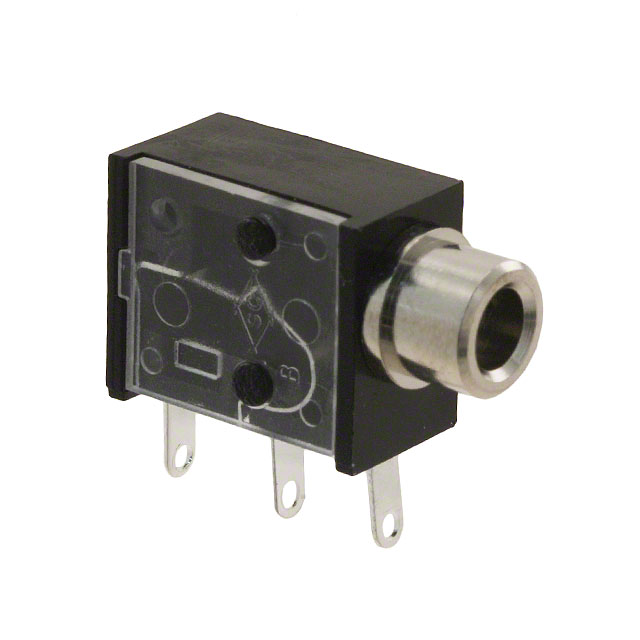

MJ-3502
CONN JACK MONO 3.5MM R/A
MJ-3502-NUT
REPLACEMENT NUT FOR MJ-3502
MJ-3502N
CONN JACK MONO 3.5MM R/A

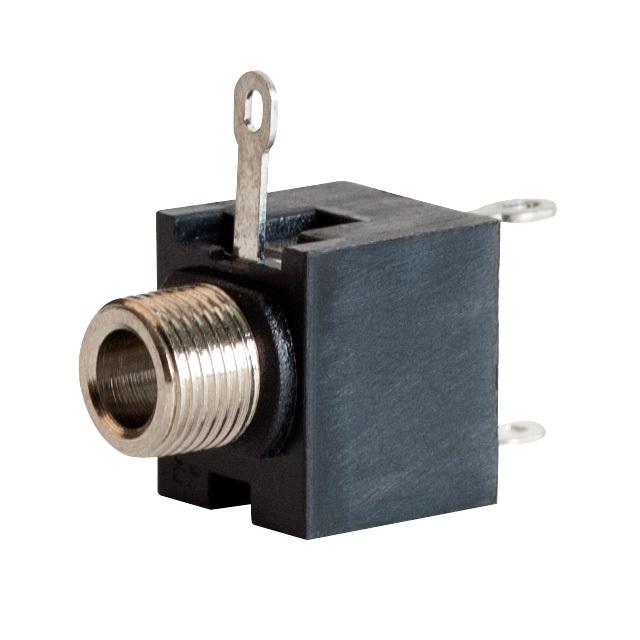

MJ-3507
CONN AUDIO JACK 3.5MM MONO

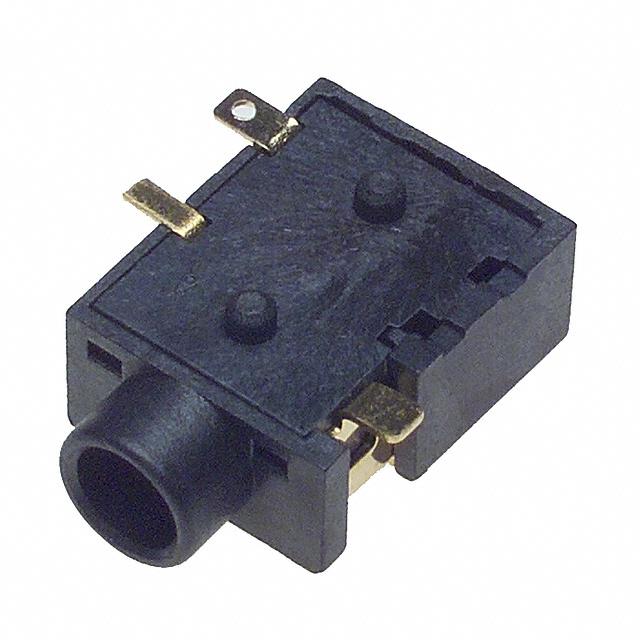

MJ-3510-SMT
