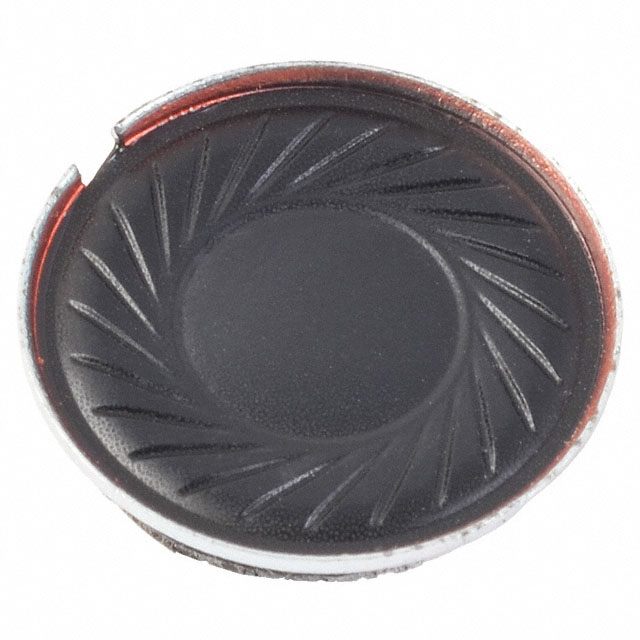

CDM-15008
Speakers
- Manufacturer No:
- CDM-15008
- Manufacture:
- CUI, Inc.
- Datasheet:
- CDM-15008
- Description:
- SPEAKER 8OHM 250MW TOP PORT 87DB
In Stock
0 pcs On sales
$0
Product Parameter
- Series
- CDM
- Efficiency - dBA
- 92.00
- Ratings
- -
- Size / Dimension
- 0.591" Dia (15.00mm)
- Impedance
- 8 Ohms
- Efficiency - Type
- Sound Pressure Level (SPL)
- Packaging
- Tray
- Material - Magnet
- Nd-Fe-B
- Technology
- Magnetic
- Ingress Protection
- -
- Part Status
- Obsolete
- Efficiency - Testing
- 300mW/100mm
- Power - Max
- 500mW
- Height - Seated (Max)
- 0.138" (3.50mm)
- Termination
- Spring Type
- Frequency - Self Resonant
- 900Hz
- Port Location
- Top
- Power - Rated
- 250mW
- Type
- General Purpose
- Frequency Range
- 720Hz ~ 20kHz
- Shape
- Round
- Material - Cone
- Polyester, Polyethylene Terephthalate (PET)
