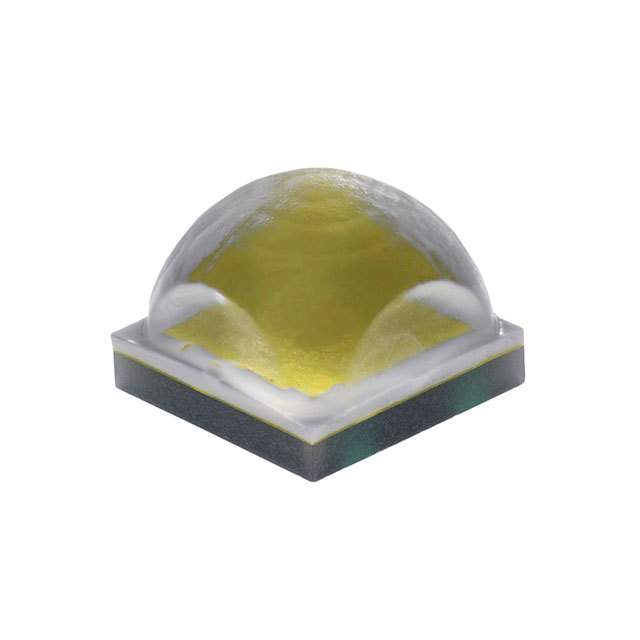

XHP35B-00-0000-0D0HE20E5
LED Lighting - White
- Manufacturer No:
- XHP35B-00-0000-0D0HE20E5
- Manufacture:
- Cree Inc.
- Package:
- 1414 (3535 Metric)
- Datasheet:
- XHP35B-00-0000-0D0HE20E5
- Description:
- XLAMP XHP35B WHITE LED
In Stock
0 pcs On sales
$0
Product Parameter
- Color
- White, Neutral
- Supplier Device Package
- SMD
- Series
- XLamp® XHP35.2
- CRI (Color Rendering Index)
- 80
- CCT (K)
- 4000K
- Flux @ 25°C, Current - Test
- -
- Packaging
- Digi-Reel®
- Flux @ 85°C, Current - Test
- 613lm (590lm ~ 635lm)
- Part Status
- Discontinued at Digi-Key
- Lumens/Watt @ Current - Test
- 156 lm/W
- Current - Max
- 1.05A
- Voltage - Forward (Vf) (Typ)
- 11.2V
- Mounting Type
- Surface Mount
- Thermal Resistance of Package
- 1.8°C/W
- Viewing Angle
- 135°
- Current - Test
- 350mA
- Package / Case
- 1414 (3535 Metric)
- Size / Dimension
- 0.136" L x 0.136" W (3.45mm x 3.45mm)
- Height - Seated (Max)
- 0.109" (2.77mm)
