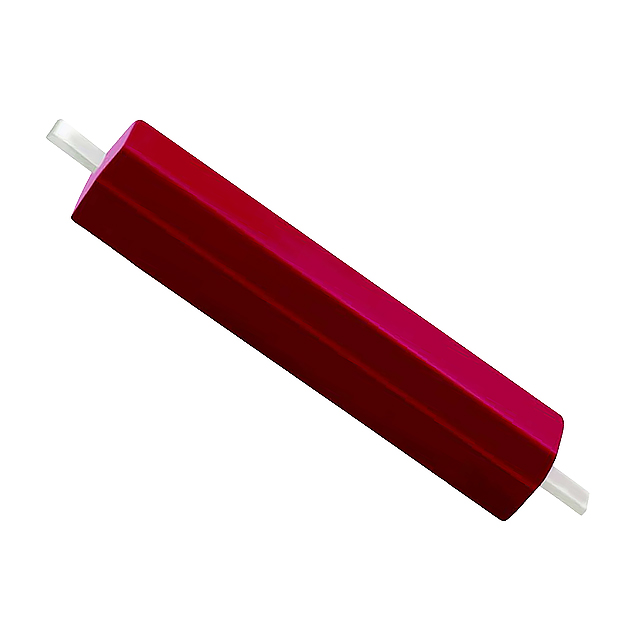

CT10-1530-G1
Magnetic, Reed Switches
- Manufacturer No:
- CT10-1530-G1
- Manufacture:
- Coto Technology
- Datasheet:
- CT10-1530-G1
- Description:
- SWITCH REED SPST-NO 500MA 140V
In Stock
1137916 pcs On sales
$0
Product Parameter
- Power - Rated
- 10W
- Release Range
- -
- Current - Carry
- 500mA (DC)
- Length - Overall
- 0.640" (16.26mm)
- Type
- Molded Body
- Termination Style
- Gull Wing
- Series
- CT10
- Height Above Board
- 0.115" (2.92mm)
- Circuit
- SPST-NO
- Current - Switching
- 500mA (AC/DC)
- Packaging
- Digi-Reel®
- Operating Temperature
- -40°C ~ 125°C
- Part Status
- Active
- Voltage - Switching AC
- 140V
- Size - Body
- 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm)
- Voltage - Switching DC
- 200V
- Mounting Type
- Surface Mount
- Operate Range
- 15 ~ 30AT
