9081-05-40
Reed Relays
- Manufacturer No:
- 9081-05-40
- Manufacture:
- Coto Technology
- Datasheet:
- 9081-05-40
- Description:
- RELAY REED SPST 500MA 5V
In Stock
0 pcs On sales
$0
Product Parameter
- Operate Time
- 0.5ms
- Release Time
- 0.2ms
- Mounting Type
- Through Hole
- Series
- 9000, Spartan
- Coil Resistance
- 1 kOhms
- Features
- EMI Shielded
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 200VAC, 200VDC - Max
- Packaging
- Bulk
- Termination Style
- PC Pin
- Part Status
- Obsolete
- Must Operate Voltage
- 3.75 VDC
- Seal Rating
- -
- Must Release Voltage
- 0.4 VDC
- Coil Current
- 5.0mA
- Operating Temperature
- -20°C ~ 85°C
- Coil Voltage
- 5VDC
- Contact Rating (Current)
- 500mA
- Contact Form
- SPST-NO (1 Form A)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
9081-05-40 Relevant information
9081
BRD SPT SNAP LOCK ADHESVE 1/4"

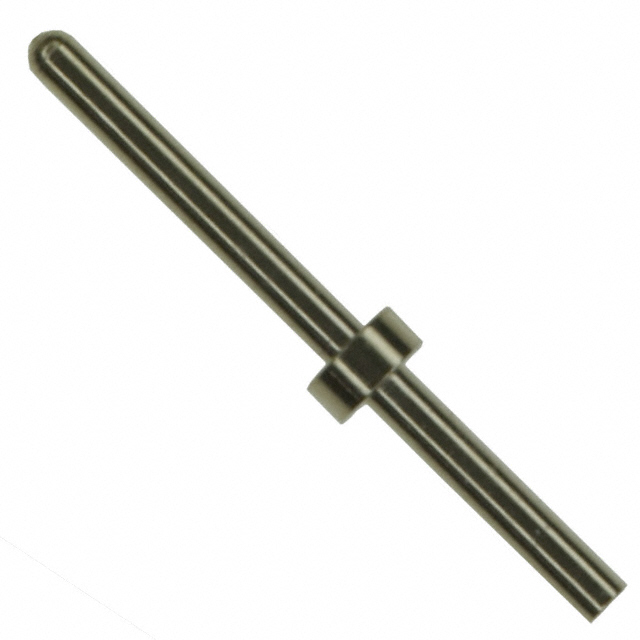

9081-0-00-15-00-00-08-0
