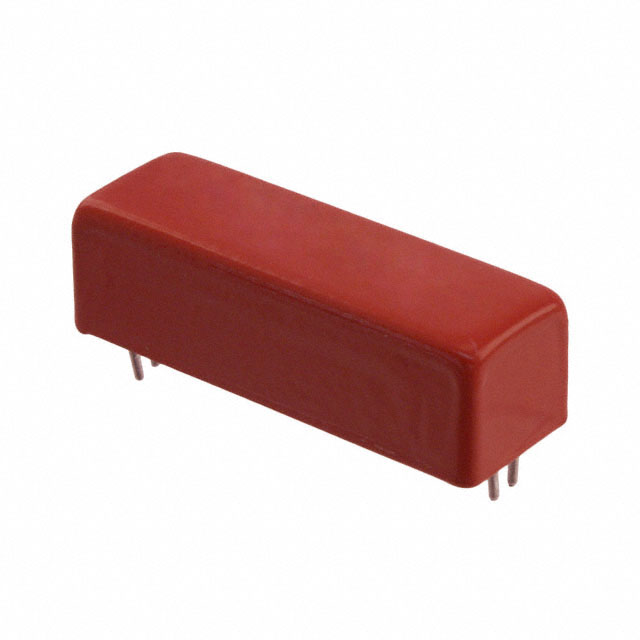

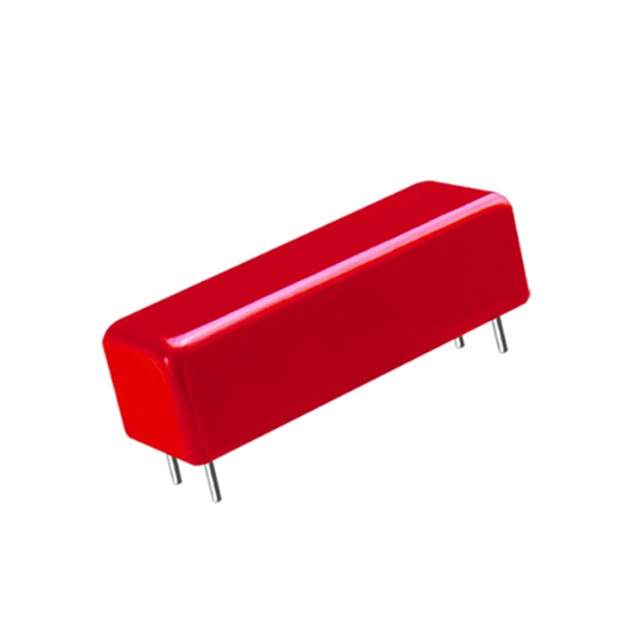

7301-12-1010
Reed Relays
- Manufacturer No:
- 7301-12-1010
- Manufacture:
- Coto Technology
- Datasheet:
- 7301-12-1010
- Description:
- RELAY REED SPST 500MA 12V
In Stock
0 pcs On sales
$14.99
Product Parameter
- Mounting Type
- Through Hole
- Series
- 7000
- Coil Resistance
- 1.1 kOhms
- Features
- Electrostatic Shield
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 500VAC, 500VDC - Max
- Packaging
- Bulk
- Termination Style
- PC Pin
- Part Status
- Active
- Must Operate Voltage
- 9 VDC
- Seal Rating
- -
- Must Release Voltage
- 1 VDC
- Coil Current
- 10.9mA
- Operating Temperature
- -20°C ~ 85°C
- Coil Voltage
- 12VDC
- Contact Rating (Current)
- 500mA
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 1ms
- Release Time
- 0.1ms
