MGFW34815
DC DC Converters
- Manufacturer No:
- MGFW34815
- Manufacture:
- Cosel USA, Inc.
- Package:
- 5-SIP Module
- Datasheet:
- MGFW34815
- Description:
- DC DC CONVERTER +/-15V 3W
In Stock
28 pcs On sales
$16.2
Product Parameter
- Efficiency
- 81%
- Voltage - Isolation
- 1.5kV
- Part Status
- Active
- Operating Temperature
- -40°C ~ 85°C (With Derating)
- Applications
- ITE (Commercial)
- Voltage - Input (Max)
- 76V
- Mounting Type
- Through Hole
- Voltage - Input (Min)
- 18V
- Power (Watts)
- 3W
- Current - Output (Max)
- 100mA, 100mA
- Package / Case
- 5-SIP Module
- Size / Dimension
- 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
- Number of Outputs
- 2
- Voltage - Output 1
- 15V
- Type
- Isolated Module
- Voltage - Output 2
- -15V
- Series
- MGFW (3W)
- Voltage - Output 3
- -
- Features
- OCP
- Voltage - Output 4
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MGFW34815 Relevant information

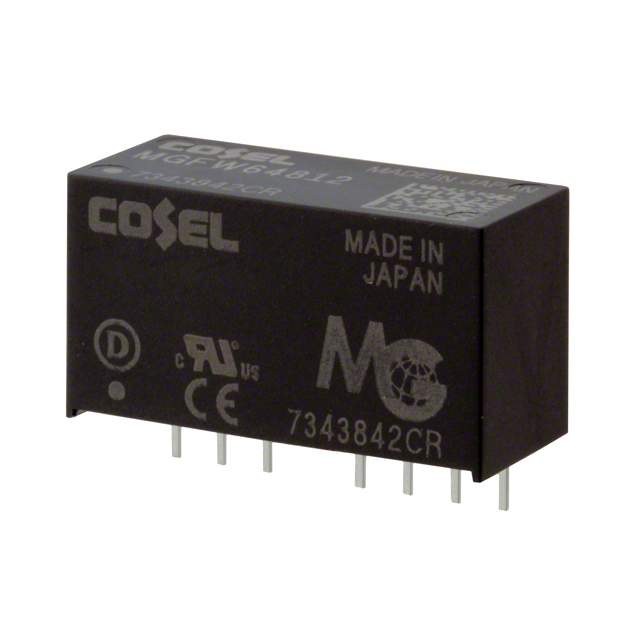

MGFW102412
DC DC CONVERTER +/-12V 10W
MGFW102415
DC DC CONVERTER +/-15V 10W
MGFW104812
DC DC CONVERTER +/-12V 10W
MGFW104815
DC DC CONVERTER +/-15V 10W

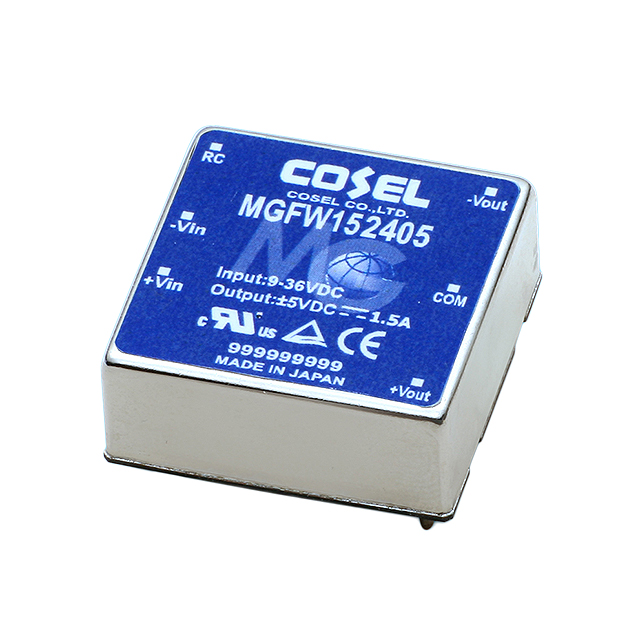

MGFW152405
