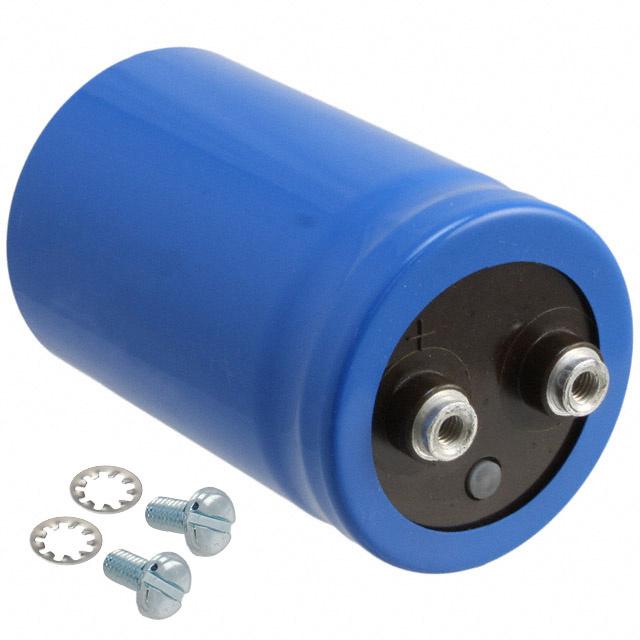

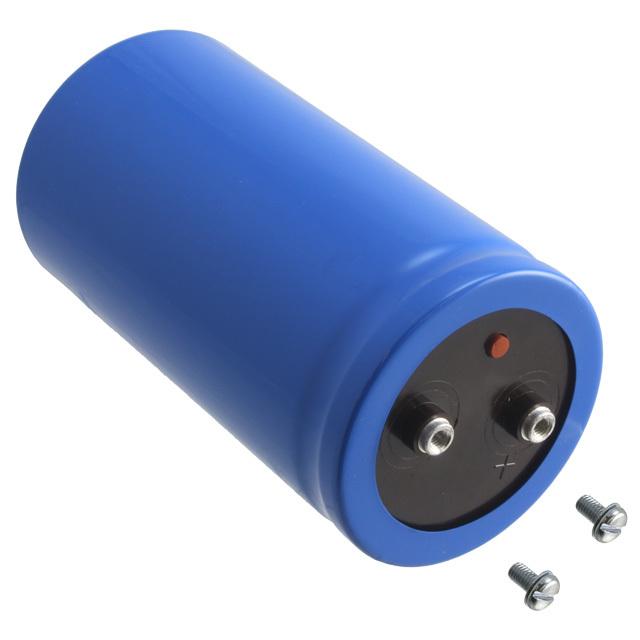

CGS203U025V3C
Aluminum Electrolytic Capacitors
- Manufacturer No:
- CGS203U025V3C
- Manufacture:
- Cornell Dubilier Electronics (CDE)
- Package:
- Radial, Can - Screw Terminals
- Datasheet:
- CGS203U025V3C
- Description:
- CAP ALUM 20000UF 25V SCREW
In Stock
50 pcs On sales
$32.4
Product Parameter
- Lead Spacing
- -
- ESR (Equivalent Series Resistance)
- 24mOhm @ 120Hz
- Polarization
- Polar
- Mounting Type
- Chassis Mount
- Package / Case
- Radial, Can - Screw Terminals
- Voltage - Rated
- 25V
- Series
- CGS
- Lifetime @ Temp.
- 2000 Hrs @ 85°C
- Ratings
- -
- Size / Dimension
- 2.000" Dia (50.80mm)
- Packaging
- Bulk
- Height - Seated (Max)
- 3.125" (79.38mm)
- Tolerance
- -10%, +75%
- Operating Temperature
- -40°C ~ 85°C
- Capacitance
- 20000µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 8A @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 10.4A @ 10kHz
