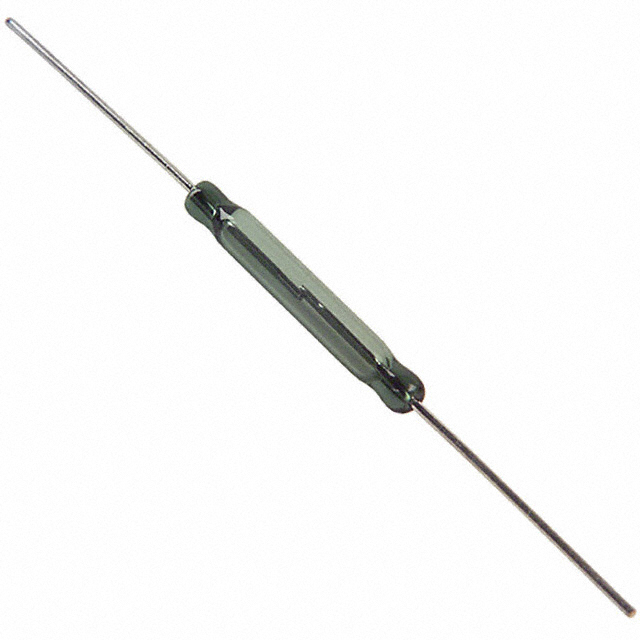

RI-46GP2530
Magnetic, Reed Switches
- Manufacturer No:
- RI-46GP2530
- Manufacture:
- Comus International
- Datasheet:
- RI-46GP2530
- Description:
- SWITCH REED SPST-NO 1A 250V
In Stock
5982 pcs On sales
$0.74
Product Parameter
- Packaging
- Bulk
- Termination Style
- Axial
- Capacitance
- 0.2pF
- Height Above Board
- -
- Part Status
- Active
- Current - Switching
- 1A (AC/DC)
- Size - Body
- 0.106" Dia x 0.807" L (2.70mm x 20.50mm)
- Operating Temperature
- -55°C ~ 125°C
- Operate Time
- 0.35ms
- Voltage - Switching AC
- 250V
- Release Time
- 0.03ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Through Hole
- Operate Range
- 25 ~ 30AT
- Power - Rated
- 40W
- Type
- Glass Body
- Release Range
- -
- Series
- RI-46
- Current - Carry
- 3A (DC)
- Circuit
- SPST-NO
- Length - Overall
- 2.157" (54.79mm)
