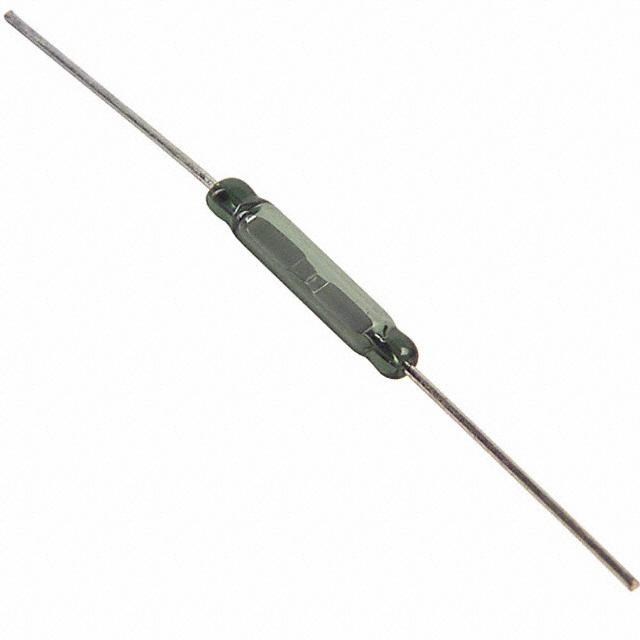

RI-03GP1520
Magnetic, Reed Switches
- Manufacturer No:
- RI-03GP1520
- Manufacture:
- Comus International
- Datasheet:
- RI-03GP1520
- Description:
- SWITCH REED SPST-NO 500MA 140V
In Stock
7987 pcs On sales
$0.66
Product Parameter
- Size - Body
- 0.100" Dia x 0.591" L (2.54mm x 15.00mm)
- Operating Temperature
- -55°C ~ 125°C
- Operate Time
- 0.25ms
- Voltage - Switching AC
- 140V
- Release Time
- 0.03ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Through Hole
- Operate Range
- 15 ~ 20AT
- Power - Rated
- 10W
- Type
- Glass Body
- Release Range
- -
- Series
- RI-03
- Current - Carry
- 1.5A (DC)
- Circuit
- SPST-NO
- Length - Overall
- 1.811" (46.00mm)
- Packaging
- Bulk
- Termination Style
- Axial
- Capacitance
- 0.3pF
- Height Above Board
- -
- Part Status
- Active
- Current - Switching
- 500mA (AC/DC)
