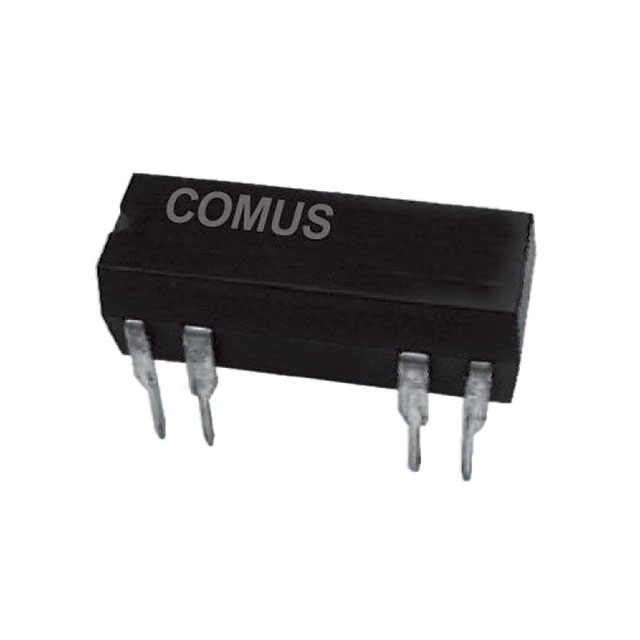

3570-1331-121
Reed Relays
- Manufacturer No:
- 3570-1331-121
- Manufacture:
- Comus International
- Datasheet:
- 3570-1331-121
- Description:
- RELAY REED SIP SPST .5A 12V
In Stock
7562 pcs On sales
$1.18
Product Parameter
- Features
- -
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 150VDC - Max
- Packaging
- Tube
- Termination Style
- PC Pin
- Part Status
- Active
- Must Operate Voltage
- 9 VDC
- Seal Rating
- -
- Must Release Voltage
- 1 VDC
- Coil Current
- 12.0mA
- Operating Temperature
- -40°C ~ 85°C
- Coil Voltage
- 12VDC
- Contact Rating (Current)
- 500mA
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 0.35ms
- Release Time
- 0.5ms
- Mounting Type
- Through Hole
- Series
- 3570
- Coil Resistance
- 1 kOhms
