19028421A
AC Fans
- Manufacturer No:
- 19028421A
- Manufacture:
- Comair Rotron
- Datasheet:
- 19028421A
- Description:

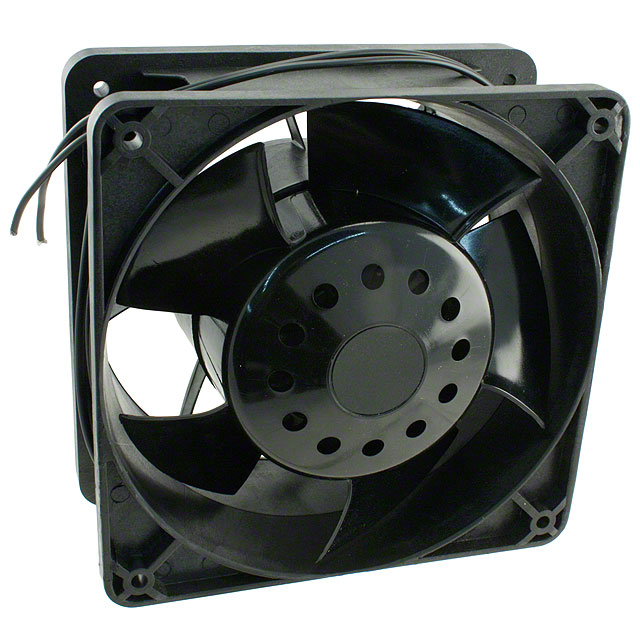

- FAN AXIAL 120X38MM 220VAC MX3B1
In Stock
332 pcs On sales
$42.66
Product Parameter
- Termination
- 2 Terminals
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 3100 RPM
- Power (Watts)
- 18.00W
- Noise
- 51.0 dB(A)
- Voltage Range
- 198 ~ 242VAC
- Width
- 38.00mm
- Static Pressure
- 0.340 in H2O (84.7 Pa)
- Series
- Muffin XL AC
- Voltage - Rated
- 220VAC
- Weight
- 1 lb (453.59 g)
- Lifetime @ Temp.
- Varies Based on Temperature
- Air Flow
- 100.0 CFM (2.80m³/min)
- Material - Blade
- Magnesium Alloy
- Fan Type
- Tubeaxial
- Material - Frame
- Magnesium Alloy
- Features
- -
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, cUL, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.110A
