88315-L25
Coaxial Cables (RF)
- Manufacturer No:
- 88315-L25
- Manufacture:
- Cinch Connectivity Solutions Semflex
- Datasheet:
- 88315-L25
- Description:
- CABLE LA 190S 25 FT LENGTH
In Stock
20 pcs On sales
$828.44
Product Parameter
- Jacket Color
- Blue
- Shield Coverage
- -
- Usage
- -
- Shield Material
- Copper, Silver Coated
- Length
- 25.0' (7.62m)
- Conductor Strand
- Solid
- Series
- LA
- Conductor Material
- Copper, Silver Coated
- Features
- -
- Dielectric Diameter
- 0.147" (3.73mm)
- Impedance
- 50 Ohms
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Cable Type
- Coaxial
- Operating Temperature
- -
- Wire Gauge
- -
- Jacket (Insulation) Diameter
- 0.189" (4.80mm)
- Cable Group
- LA190S
- Jacket (Insulation) Material
- Ethylene Tetrafluoroethylene (ETFE), Fluorinated Ethylene-Propylene (FEP)
- Part Status
- Active
- VoP, Velocity of Propagation
- 84
- Shield Type
- Braid
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
88315-L25 Relevant information
8831

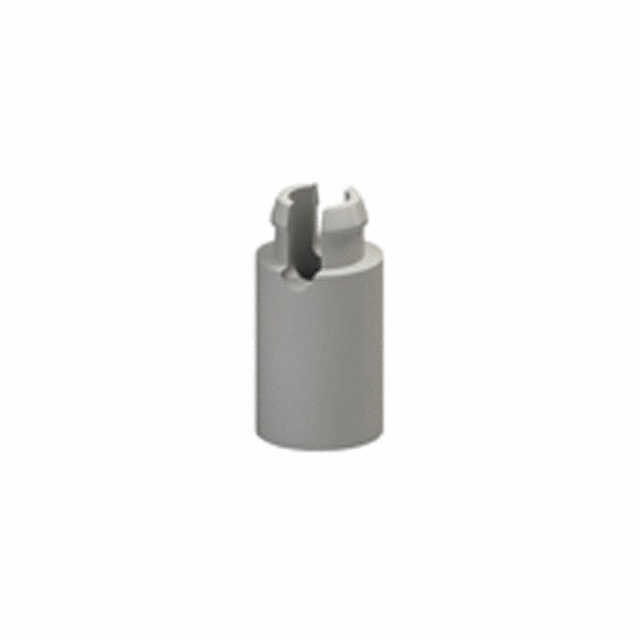

BRD SPT SNAP FIT SCREW MNT 1/4"
8831-0-00-01-00-00-03-0

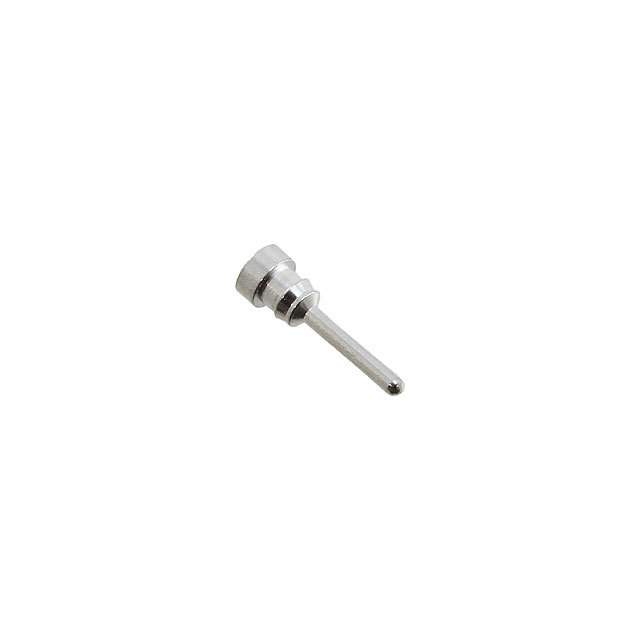

CONN PC PIN
