DCDH-25S4C40.5BN

D-Sub Connectors

Manufacturer No:
DCDH-25S4C40.5BN
Manufacture:
Cinch Connectivity Solutions
Datasheet:
DCDH-25S4C40.5BN
Description:
CONN MICRO-D RCPT 25POS PNL MNT

In Stock

48 pcs On sales

$168.4

Product Parameter

Wire Gauge
24 AWG
Connector Style
D-Type, Micro-D
Part Status
Active
Contact Material
Copper Alloy
Termination
Wire Leads
Ingress Protection
Harsh Environment
Contact Form
Machined
Dielectric Material
Diallyl Phthalate (DAP), Glass Filled
Contact Type
Signal
Number of Positions
25
Mounting Type
Panel Mount
Current Rating (Amps)
3A
Connector Type
Receptacle, Female Sockets
Operating Temperature
-55°C ~ 125°C
Contact Finish
Gold
Shell Material, Finish
Aluminum Alloy, Nickel Plated, Electroless
Color
-
Flange Feature
Housing/Shell (4-40)
Contact Finish Thickness
50.0µin (1.27µm)
Series
Dura-Con™
Number of Rows
2
Material Flammability Rating
UL94 V-0
Features
-
Voltage Rating
-
Shell Size, Connector Layout
-
Packaging
-
Backset Spacing
-

Company Profile

Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.

DCDH-25S4C40.5BN Relevant information

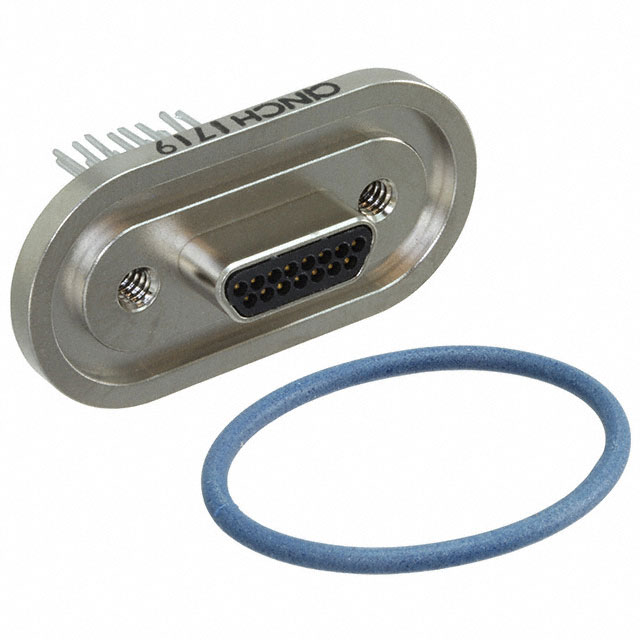

DCDH-15P4C40.5BN
DCDH-15P4C40.5BN

CONN MICRO-D PLUG 15POS PNL MNT

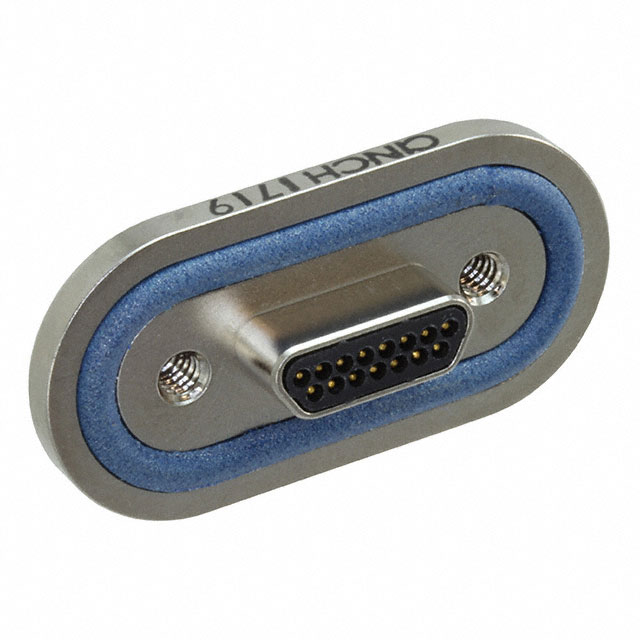

DCDH-15PSBN
DCDH-15PSBN

CONN MICRO-D PLUG 15POS PNL MNT

DCDH-15S4C40.5BN
DCDH-15S4C40.5BN

CONN MICRO-D RCPT 15POS PNL MNT

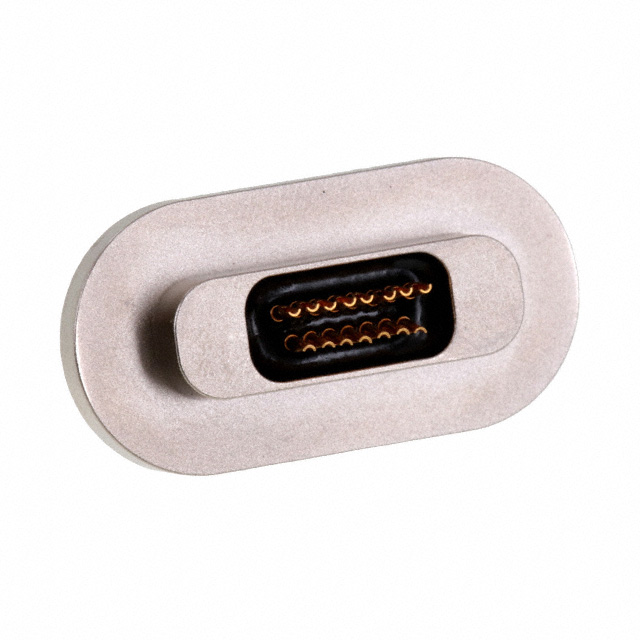

DCDH-15SSBN
