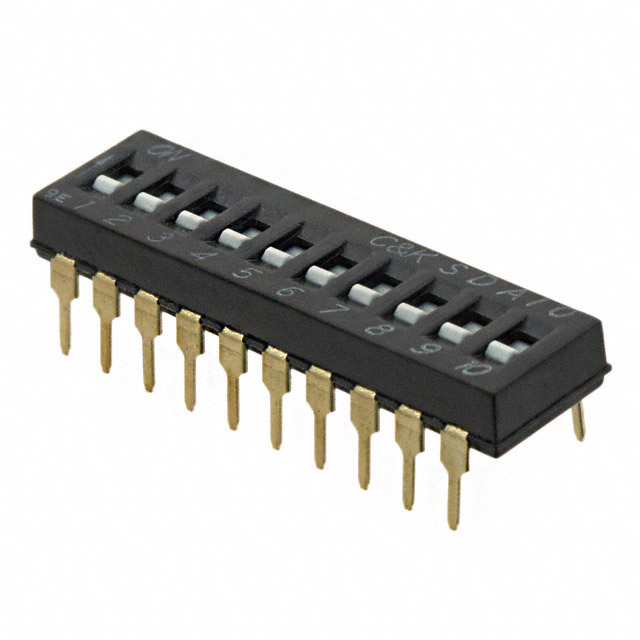

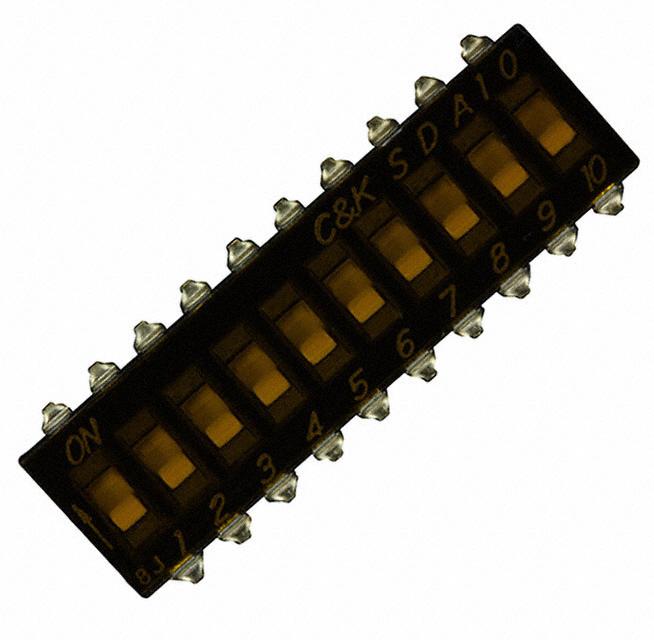

SDA10H1SBD
DIP Switches
- Manufacturer No:
- SDA10H1SBD
- Manufacture:
- C&K
- Datasheet:
- SDA10H1SBD
- Description:
- SWITCH SLIDE DIP SPST 25MA 24V
In Stock
3727 pcs On sales
$2.42
Product Parameter
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 1.076" (27.34mm)
- Voltage Rating
- 24VDC
- Series
- SDA
- Electrical Life
- 1,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 1,000 Cycles
- Features
- -
- Contact Material
- Beryllium Copper
- Washable
- No
- Termination Style
- Gull Wing
- Packaging
- Tube
- Height Above Board
- 0.214" (5.45mm)
- Part Status
- Active
- Number of Positions
- 10
- Actuator Type
- Slide (Standard)
- Current Rating (Amps)
- 25mA
- Body Material
- Polyphenylene Sulfide (PPS)
- Operating Temperature
- -40°C ~ 85°C
- Mounting Type
- Surface Mount
- Actuator Level
- Raised
