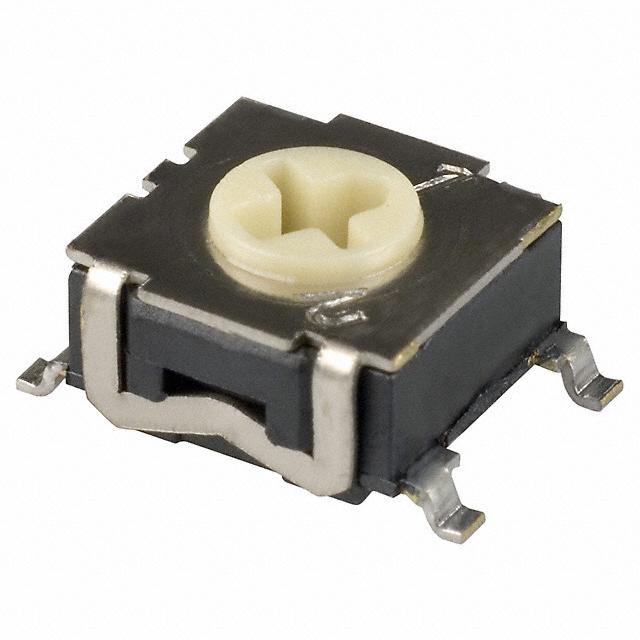

RTE0400G04
DIP Switches
- Manufacturer No:
- RTE0400G04
- Manufacture:
- C&K
- Datasheet:
- RTE0400G04
- Description:
- SWITCH ROTARY DIP SP4T 100MA 30V
In Stock
1263 pcs On sales
$0
Product Parameter
- Features
- -
- Contact Material
- Bronze
- Washable
- No
- Termination Style
- Gull Wing
- Packaging
- Digi-Reel®
- Height Above Board
- 0.168" (4.27mm)
- Part Status
- Active
- Number of Positions
- 4
- Actuator Type
- Rotary for Tool
- Current Rating (Amps)
- 100mA
- Body Material
- Polyphenylene Sulfide (PPS)
- Operating Temperature
- -25°C ~ 85°C
- Mounting Type
- Surface Mount
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 0.291" (7.40mm)
- Voltage Rating
- 30VDC
- Series
- RTE
- Electrical Life
- -
- Circuit
- SP4T
- Mechanical Life
- 20,000 Steps
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RTE0400G04 Relevant information

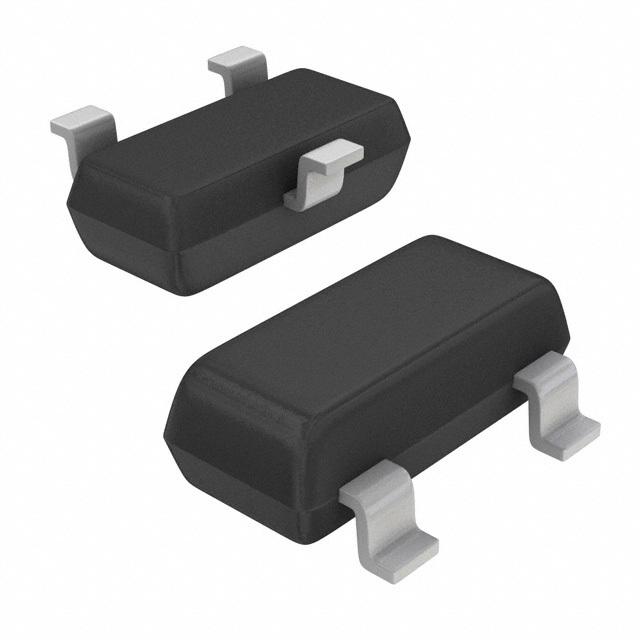

RTE002P02TL
