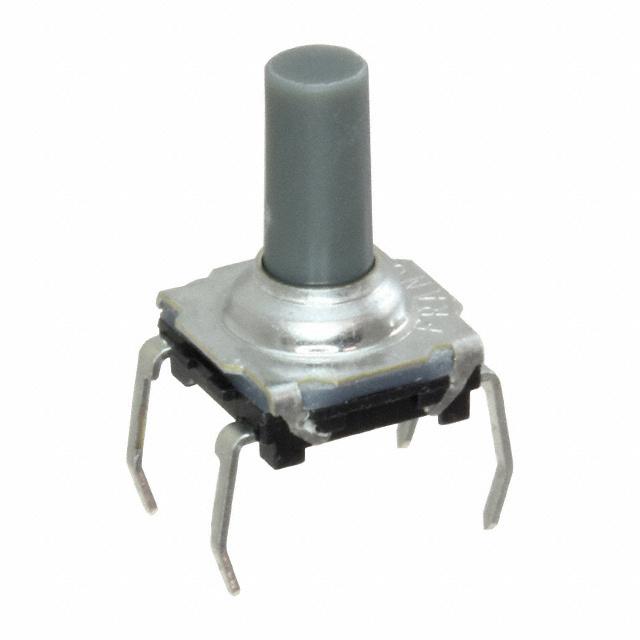

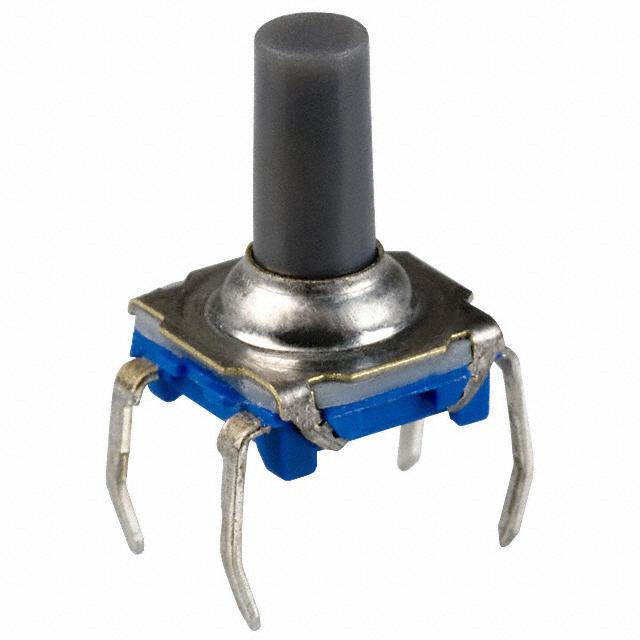

KSL0M512LFT

Tactile Switches

Manufacturer No:: KSL0M512LFT
Manufacture:: C&K
Datasheet:: KSL0M512LFT
Description:: SWITCH TACTILE SPST-NO 0.05A 32V

In Stock

360 pcs On sales

$0.7

Product Parameter

Illumination: Non-Illuminated

Contact Rating @ Voltage: 0.05A @ 32VDC

Actuator Type: Standard

Illumination Type, Color: -

Mounting Type: Through Hole

Actuator Length, Right Angle: -

Switch Travel: 0.70mm

Illumination Voltage (Nominal): -

Mechanical Life: 100,000 Cycles

Actuator Height off PCB, Vertical: 9.90mm

Operating Force: 500gf

Series: KSL MKII

Switch Function: Off-Mom

Circuit: SPST-NO

Actuator Material: -

Outline: 7.40mm x 7.40mm

Termination Style: PC Pin

Features: -

Ingress Protection: IP65 - Dust Tight, Water Resistant

Packaging: Bulk

Actuator Orientation: Top Actuated

Part Status: Active

Operating Temperature: -40°C ~ 90°C
