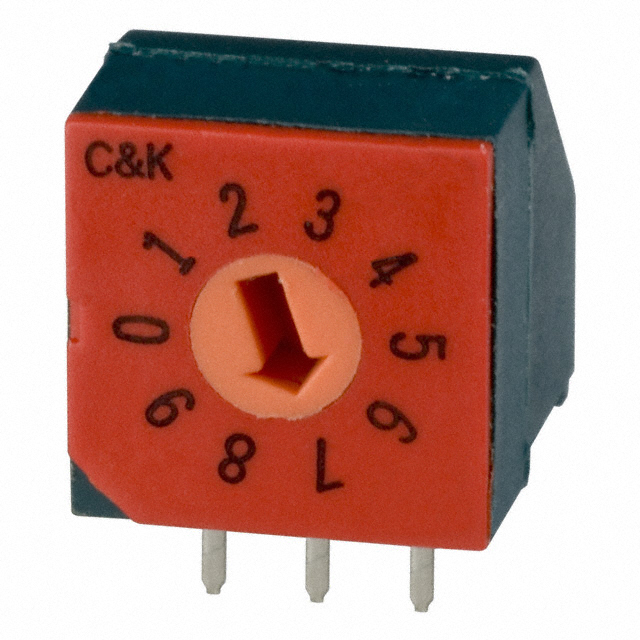

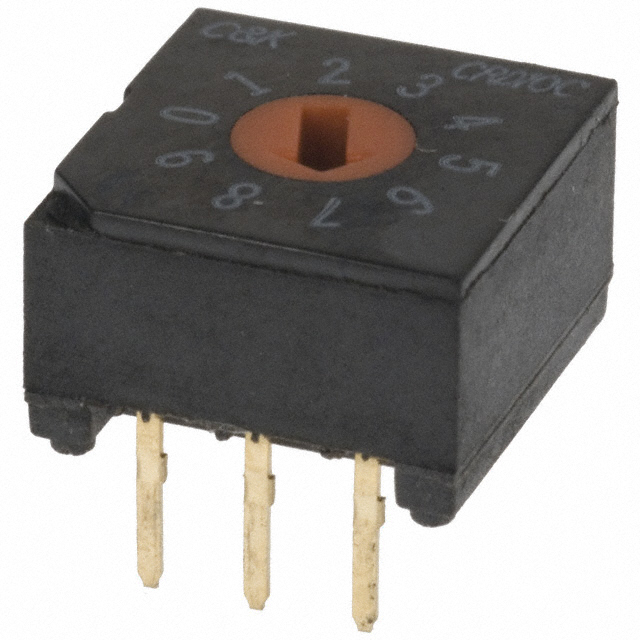

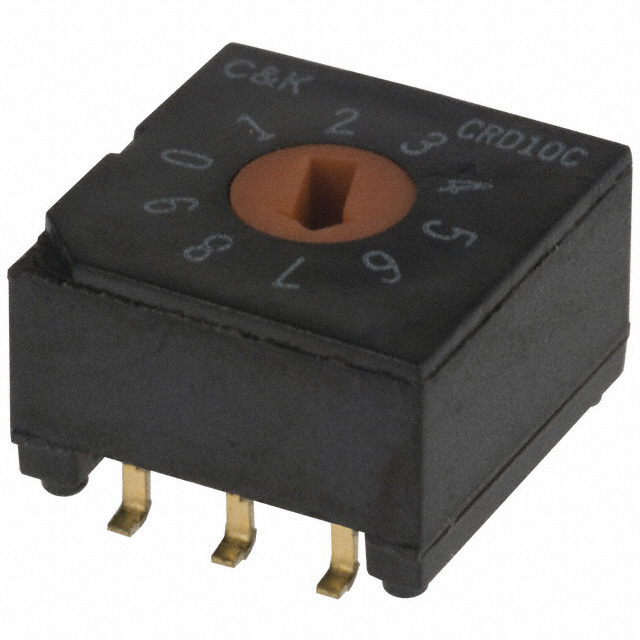

CRD10CM0SBR
DIP Switches
- Manufacturer No:
- CRD10CM0SBR
- Manufacture:
- C&K
- Datasheet:
- CRD10CM0SBR
- Description:
- SW ROTARY DIP BCD COMP 0.4VA 20V
In Stock
2215 pcs On sales
$0
Product Parameter
- Circuit
- BCD Complement
- Mechanical Life
- 30,000 Steps
- Features
- Process Sealed
- Contact Material
- Beryllium Copper
- Washable
- Yes
- Termination Style
- Gull Wing
- Packaging
- Digi-Reel®
- Height Above Board
- 0.271" (6.88mm)
- Part Status
- Active
- Number of Positions
- 10
- Actuator Type
- Rotary for Tool
- Current Rating (Amps)
- 0.4VA
- Body Material
- Polyphenylene Sulfide (PPS)
- Operating Temperature
- -20°C ~ 85°C
- Mounting Type
- Surface Mount
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 0.393" (10.00mm)
- Voltage Rating
- 20VAC/DC
- Series
- CRD
- Electrical Life
- 20,000 Steps
