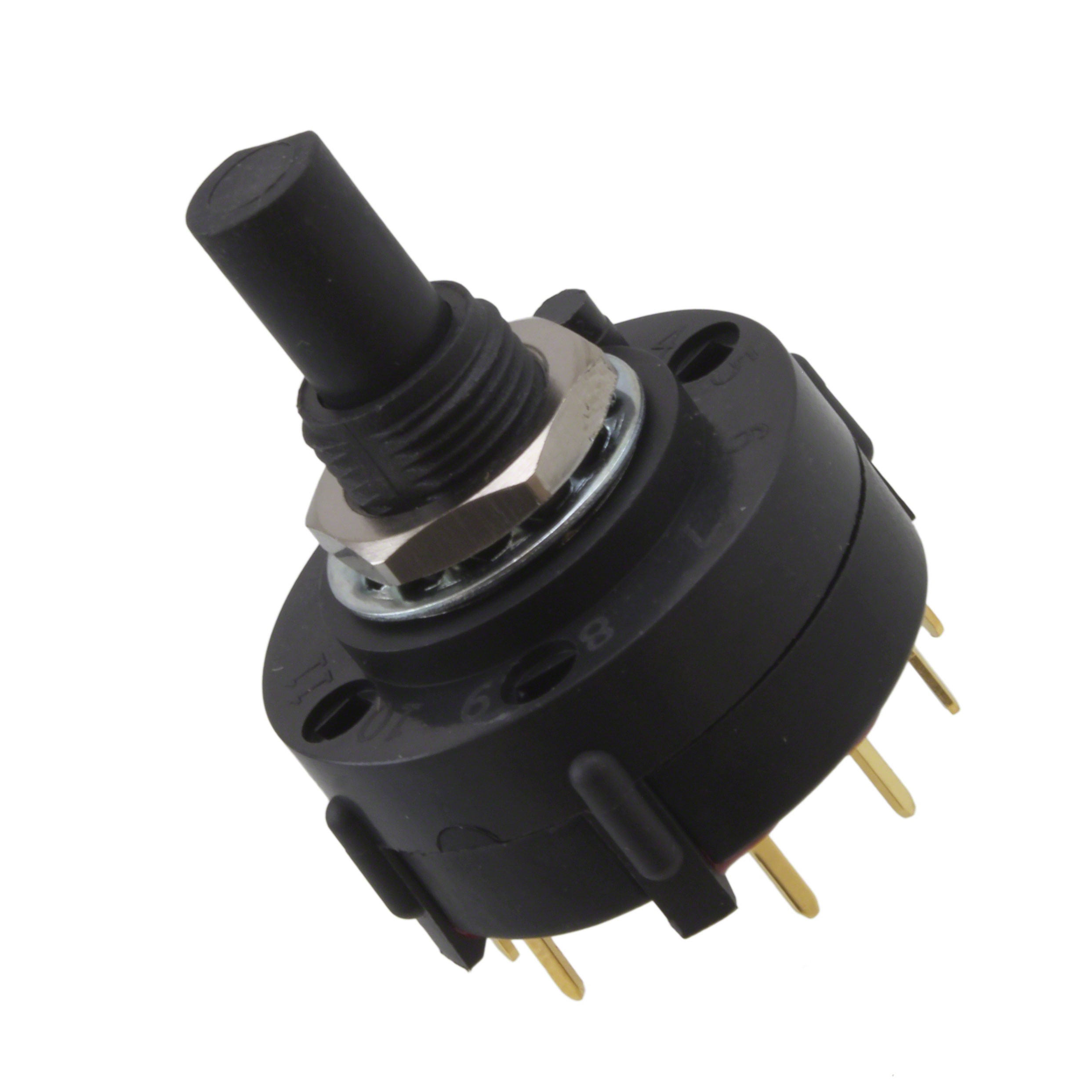

A20505RNCQK
Rotary Switches
- Manufacturer No:
- A20505RNCQK
- Manufacture:
- C&K
- Datasheet:
- A20505RNCQK
- Description:
- SWITCH ROTARY 5POS 2.5A 125V
In Stock
103 pcs On sales
$10.18
Product Parameter
- Index Stops
- Fixed
- Termination Style
- PC Pin
- Part Status
- Active
- Depth Behind Panel
- 14.48mm
- Actuator Type
- Flatted (6.35mm Dia)
- Number of Positions
- 5
- Mounting Type
- Panel Mount, Through Hole
- Voltage Rating - AC
- 125V
- Angle of Throw
- 30°
- Voltage Rating - DC
- 125V
- Contact Finish
- Silver
- Current Rating (Amps)
- 2.5A (AC), 350mA (DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 9.80mm Dia
- Actuator Length
- 12.70mm
- Number of Poles per Deck
- 2
- Number of Decks
- 1
- Operating Force
- -
- Series
- A
- Circuit per Deck
- DP5T
- Features
- Epoxy Sealed Terminals, Splashproof Bushing Seal
- Contact Material
- Silver (Ag)
