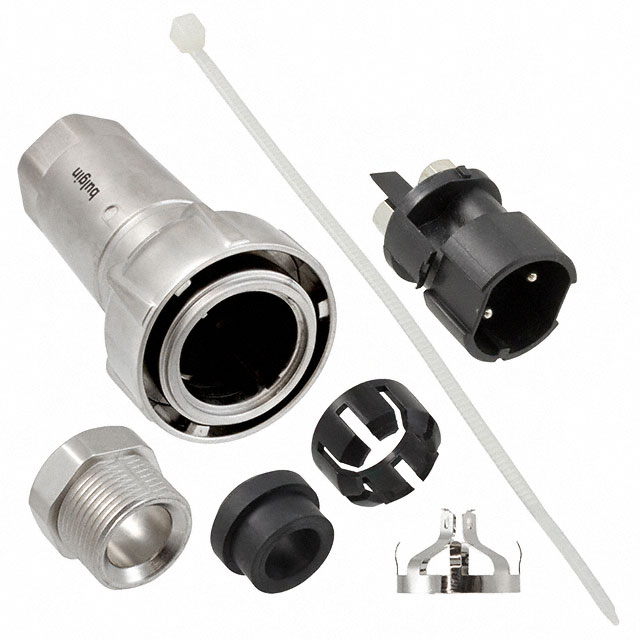

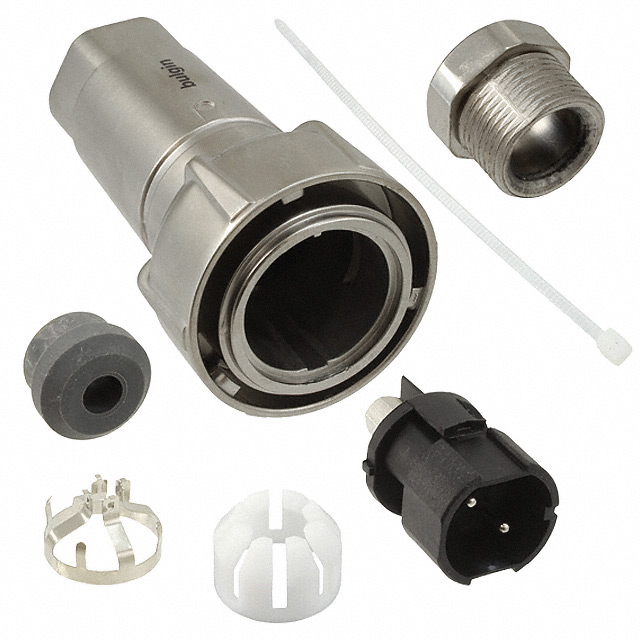

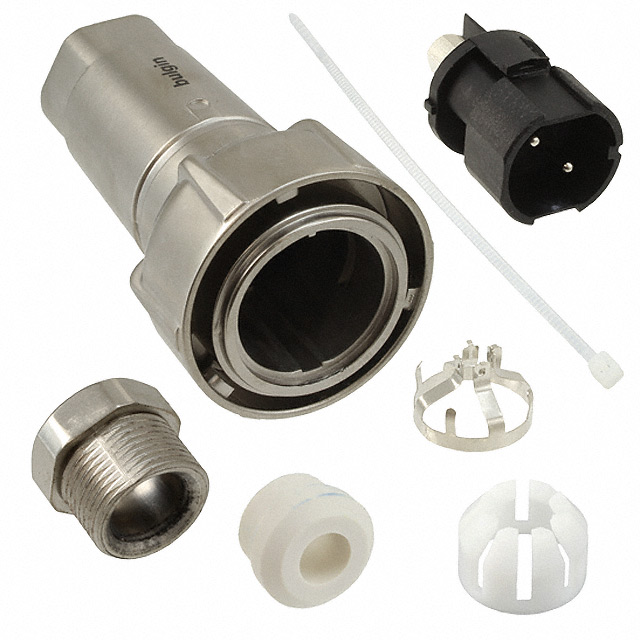

PXM7010/06S/ST/0507/SN

Circular Connectors

Manufacturer No:: PXM7010/06S/ST/0507/SN
Manufacture:: Bulgin
Datasheet:: PXM7010/06S/ST/0507/SN
Description:: CONN PLUG FMALE 6POS SCREW

In Stock

10 pcs On sales

$58.28

Product Parameter

Orientation: Keyed

Shell Size, MIL: -

Part Status: Active

Contact Material: Brass

Termination: Screw

Mounting Feature: -

Applications: -

Ingress Protection: IP66/68/69K - Dust Tight, Water Resistant, Waterproof

Shell Finish: Nickel

Number of Positions: 6 (Power)

Cable Opening: 0.197" ~ 0.276" (5.00mm ~ 7.00mm)

Shell Size - Insert: -

Mounting Type: Free Hanging (In-Line)

Current Rating (Amps): 10A

Color: Silver

Connector Type: Plug, Female Sockets

Operating Temperature: -40°C ~ 120°C

Series: Buccaneer® 7000

Fastening Type: Bayonet Lock

Contact Finish - Mating: Nickel

Features: Backshell, Coupling Nut

Shell Material: Zinc Alloy

Backshell Material, Plating: Zinc Alloy, Nickel

Packaging: Bulk

Voltage Rating: 600V

Material Flammability Rating: -

Shielding: Shielded

Insert Material: -

Contact Finish Thickness - Mating: -
