HCPL-3120-500E
Isolators - Gate Drivers
- Manufacturer No:
- HCPL-3120-500E
- Manufacture:
- Broadcom Limited
- Package:
- 8-SMD, Gull Wing
- Datasheet:
- HCPL-3120-500E
- Description:

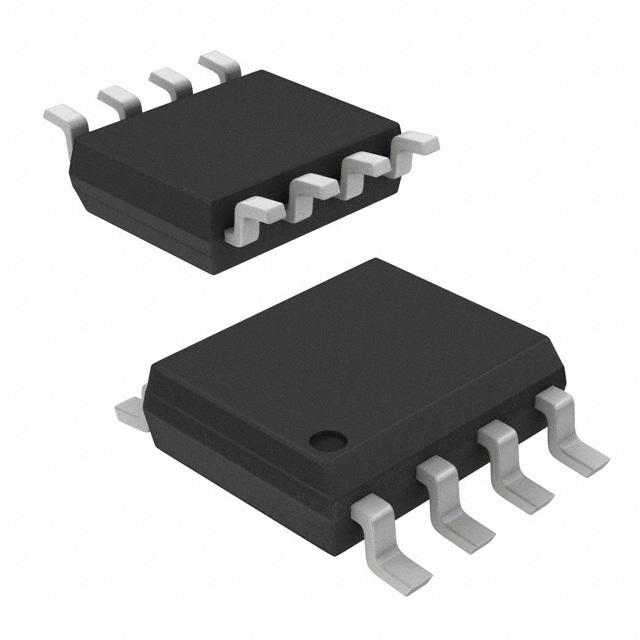

- OPTOISO 3.75KV GATE DRVR 8DIP GW
In Stock
9433 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Current - Output High, Low
- 2A, 2A
- Technology
- Optical Coupling
- Pulse Width Distortion (Max)
- 300ns
- Part Status
- Active
- Voltage - Forward (Vf) (Typ)
- 1.5V
- Mounting Type
- Surface Mount
- Current - DC Forward (If) (Max)
- 25mA
- Package / Case
- 8-SMD, Gull Wing
- Propagation Delay tpLH / tpHL (Max)
- 500ns, 500ns
- Number of Channels
- 1
- Common Mode Transient Immunity (Min)
- 25kV/µs
- Voltage - Isolation
- 3750Vrms
- Current - Peak Output
- 2.5A
- Operating Temperature
- -40°C ~ 100°C
- Rise / Fall Time (Typ)
- 100ns, 100ns
- Series
- -
- Supplier Device Package
- 8-DIP Gull Wing
- Approvals
- CSA, UR
- Voltage - Output Supply
- 15V ~ 30V
