SRN6045-470M
Fixed Inductors
- Manufacturer No:
- SRN6045-470M
- Manufacture:
- Bourns, Inc.
- Package:
- Nonstandard
- Datasheet:
- SRN6045-470M
- Description:
- FIXED IND 47UH 1.1A 257 MOHM SMD
In Stock
32269 pcs On sales
$0
Product Parameter
- Series
- SRN6045
- Size / Dimension
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
- Ratings
- -
- DC Resistance (DCR)
- 257mOhm Max
- Q @ Freq
- 13 @ 2.52MHz
- Current - Saturation
- 1.3A
- Packaging
- Digi-Reel®
- Current Rating (Amps)
- 1.1A
- Shielding
- Semi-Shielded
- Height - Seated (Max)
- 0.177" (4.50mm)
- Tolerance
- ±20%
- Operating Temperature
- -40°C ~ 125°C
- Inductance
- 47µH
- Supplier Device Package
- -
- Part Status
- Active
- Frequency - Self Resonant
- 7MHz
- Mounting Type
- Surface Mount
- Inductance Frequency - Test
- 100kHz
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Type
- Wirewound
- Base Part Number
- SRN6045
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SRN6045-470M Relevant information

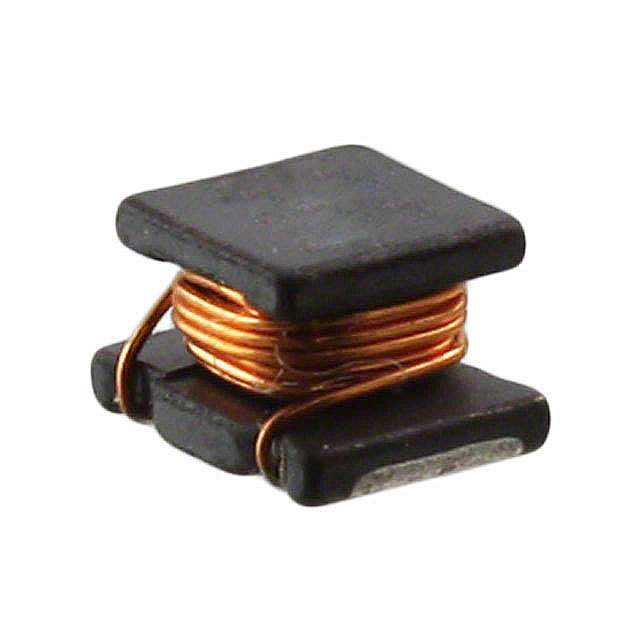

SRN6028-100M
