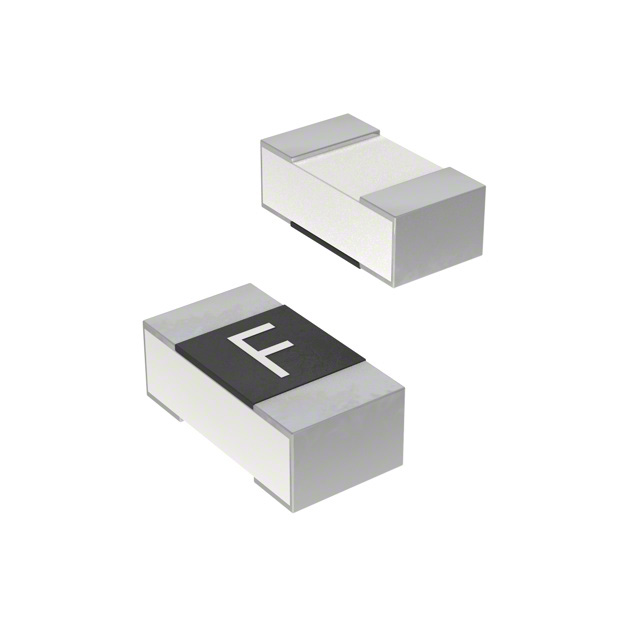

SF-0603S200-2
Fuses
- Manufacturer No:
- SF-0603S200-2
- Manufacture:
- Bourns, Inc.
- Package:
- 0603 (1608 Metric)
- Datasheet:
- SF-0603S200-2
- Description:
- FUSE BOARD MOUNT 2A 32VDC 0603
In Stock
46531 pcs On sales
$0.66
Product Parameter
- Package / Case
- 0603 (1608 Metric)
- Base Part Number
- SF-0603
- Size / Dimension
- 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm)
- Color
- -
- DC Cold Resistance
- 0.026 Ohms
- Series
- SinglFuse™ SF-0603S
- Voltage Rating - DC
- 32V
- Approvals
- UL
- Current Rating (Amps)
- 2A
- Fuse Type
- Board Mount (Cartridge Style Excluded)
- Operating Temperature
- -20°C ~ 105°C
- Packaging
- Cut Tape (CT)
- Breaking Capacity @ Rated Voltage
- 50A
- Part Status
- Active
- Melting I²t
- 0.115
- Mounting Type
- Surface Mount
- Response Time
- Slow Blow
