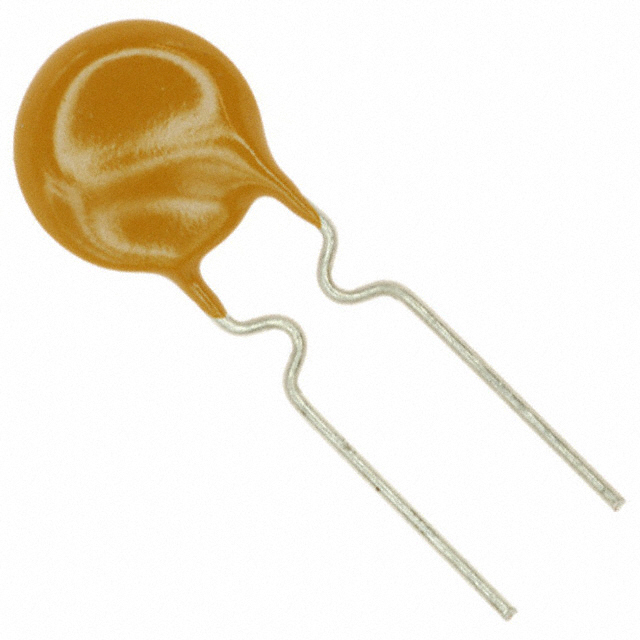

MF-RHT200-2
PTC Resettable Fuses
- Manufacturer No:
- MF-RHT200-2
- Manufacture:
- Bourns, Inc.
- Package:
- Radial, Disc
- Datasheet:
- MF-RHT200-2
- Description:
- PTC RESET FUSE 16V 2A RADIAL
In Stock
5376 pcs On sales
$0.92
Product Parameter
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- Multifuse®, MF-RHT
- Base Part Number
- MF-RHT
- Ratings
- AEC-Q200
- Size / Dimension
- 0.370" Dia x 0.118" T (9.40mm x 3.00mm)
- Approvals
- -
- Current - Trip (It)
- 3.8A
- Packaging
- Cut Tape (CT)
- Height - Seated (Max)
- 0.551" (14.00mm)
- Part Status
- Active
- Operating Temperature
- -40°C ~ 125°C
- Lead Spacing
- 0.114" (2.90mm)
- Current - Hold (Ih) (Max)
- 2A
- Time to Trip
- 3s
- Resistance - Initial (Ri) (Min)
- 45 mOhms
- Current - Max
- 100A
- Resistance - Post Trip (R1) (Max)
- 110 mOhms
