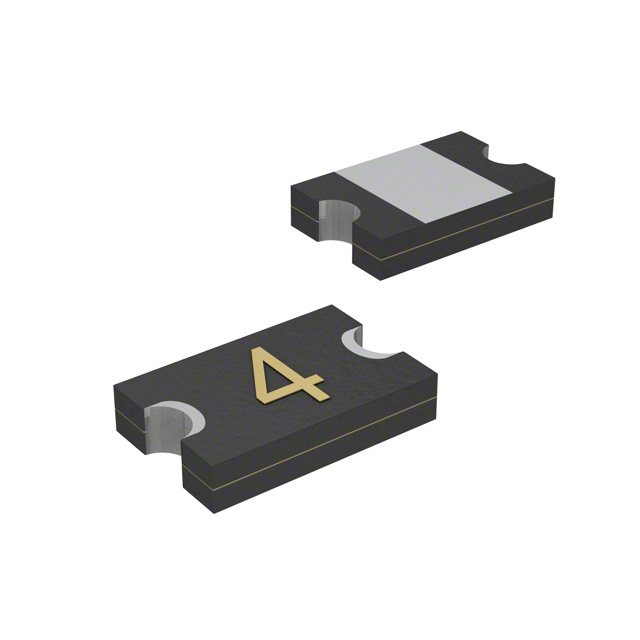

MF-PSMF110X-2
PTC Resettable Fuses
- Manufacturer No:
- MF-PSMF110X-2
- Manufacture:
- Bourns, Inc.
- Package:
- 0805 (2012 Metric), Concave
- Datasheet:
- MF-PSMF110X-2
- Description:
- PTC RESET FUSE 6V 1.1A 0805
In Stock
12000 pcs On sales
$0.29
Product Parameter
- Lead Spacing
- -
- Current - Hold (Ih) (Max)
- 1.1A
- Time to Trip
- 300ms
- Resistance - Initial (Ri) (Min)
- 60 mOhms
- Current - Max
- 40A
- Resistance - Post Trip (R1) (Max)
- 210 mOhms
- Mounting Type
- Surface Mount
- Voltage - Max
- 6V
- Package / Case
- 0805 (2012 Metric), Concave
- Type
- Polymeric
- Thickness (Max)
- 0.049" (1.25mm)
- Series
- Multifuse®, MF-PSMF
- Base Part Number
- MF-PSMF
- Ratings
- -
- Size / Dimension
- 0.085" L x 0.053" W (2.15mm x 1.35mm)
- Approvals
- cURus, TUV
- Current - Trip (It)
- 2.2A
- Packaging
- Tape & Reel (TR)
- Height - Seated (Max)
- -
- Part Status
- Active
- Operating Temperature
- -40°C ~ 85°C
