5304FE 008U500
Multiple Conductor Cables
- Manufacturer No:
- 5304FE 008U500
- Manufacture:
- Belden Inc.
- Datasheet:
- 5304FE 008U500
- Description:
- CABLE 6COND 18AWG GRAY 500'
In Stock
5 pcs On sales
$232.8
Product Parameter
- Wire Gauge
- 18 AWG
- Jacket (Insulation) Material
- Poly-Vinyl Chloride (PVC), Riser
- Part Status
- Active
- Jacket (Insulation) Thickness
- 0.0170" (0.432mm)
- Shield Type
- Foil
- Jacket Color
- Gray
- Shield Coverage
- 100%
- Shield Material
- Aluminum
- Usage
- Alarm, Security, Sound
- Conductor Strand
- 7/26
- Length
- 500.0' (152.4m)
- Conductor Material
- Copper, Bare
- Series
- -
- Conductor Insulation
- Polypropylene (PP)
- Ratings
- UL Style CMR
- Number of Conductors
- 6
- Features
- Drain Wire, Rip Cord
- Operating Temperature
- -20°C ~ 75°C
- Cable Type
- Multi-Conductor
- Jacket (Insulation) Diameter
- 0.224" (5.69mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
5304FE 008U500 Relevant information
5304
WIRE SPLICE MOTOR KIT 1PAIR
530400B00100G
BOARD LEVEL HEAT SINK

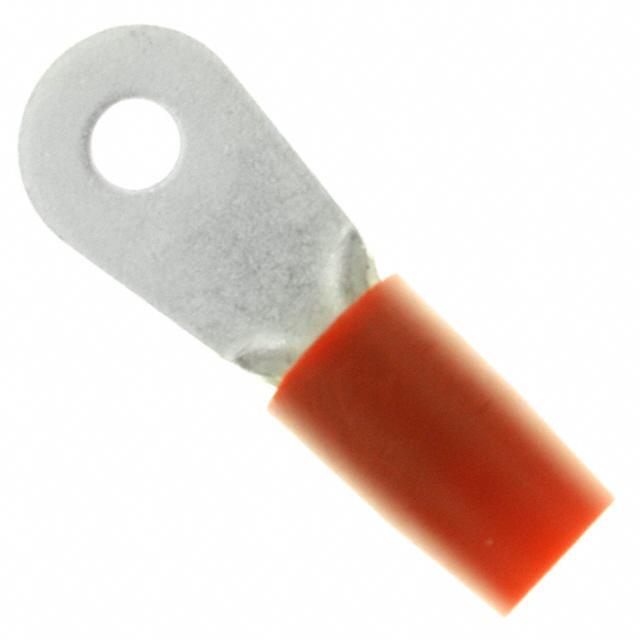

53041
