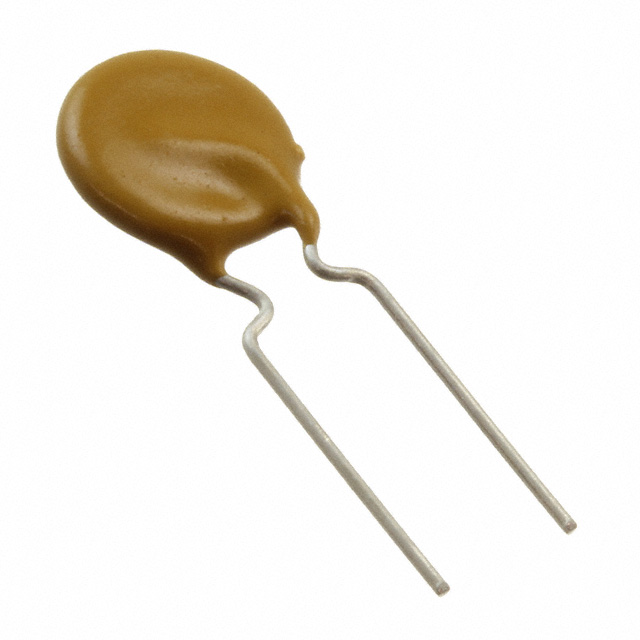

0ZRN0300FF1E
PTC Resettable Fuses
- Manufacturer No:
- 0ZRN0300FF1E
- Manufacture:
- Bel Fuse, Inc.
- Package:
- Radial, Disc
- Datasheet:
- 0ZRN0300FF1E
- Description:
- RADIAL PTC RESETTABLE FUSE, 3A
In Stock
3000 pcs On sales
$0.46
Product Parameter
- Ratings
- -
- Current - Trip (It)
- 6A
- Approvals
- cURus, TUV, UL
- Height - Seated (Max)
- 0.543" (13.80mm)
- Packaging
- -
- Operating Temperature
- -40°C ~ 125°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 3A
- Lead Spacing
- 0.201" (5.10mm)
- Resistance - Initial (Ri) (Min)
- 33 mOhms
- Time to Trip
- 5s
- Resistance - Post Trip (R1) (Max)
- 79 mOhms
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- 0ZRN
- Size / Dimension
- 0.346" L x 0.118" W (8.80mm x 3.00mm)
